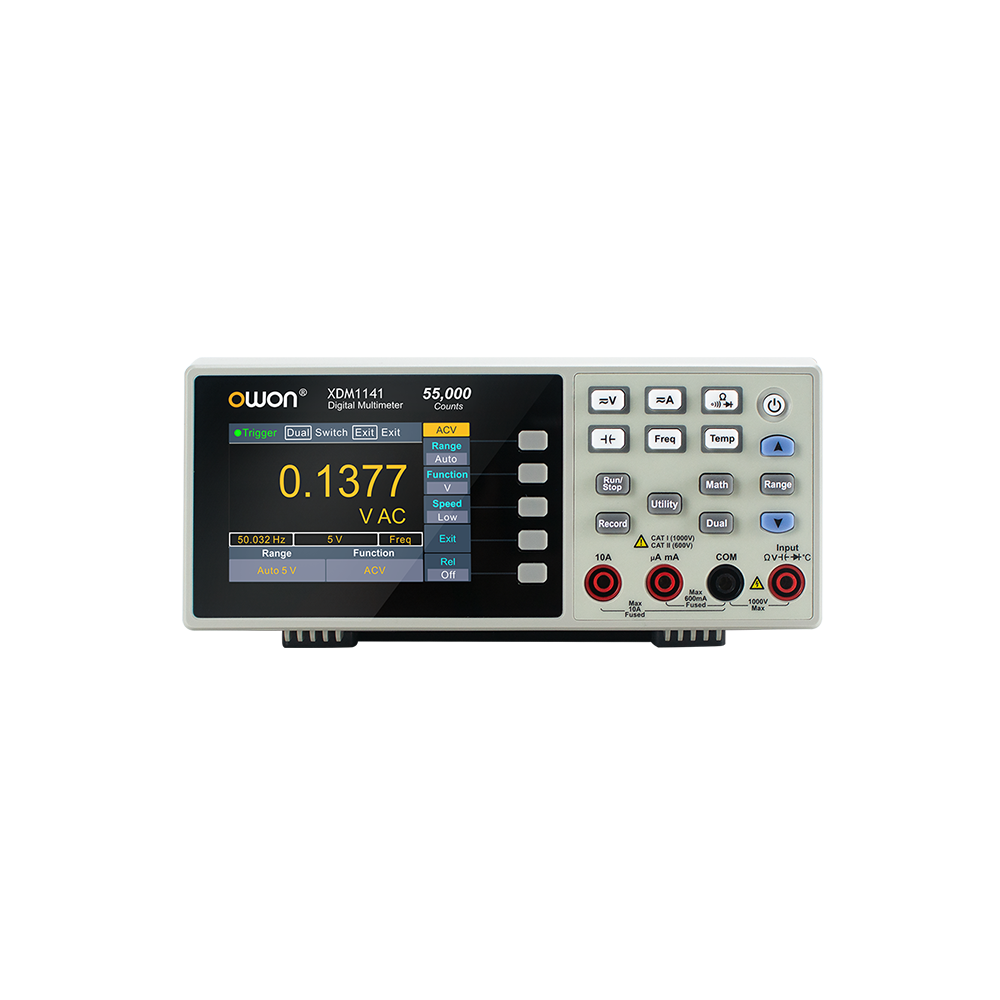

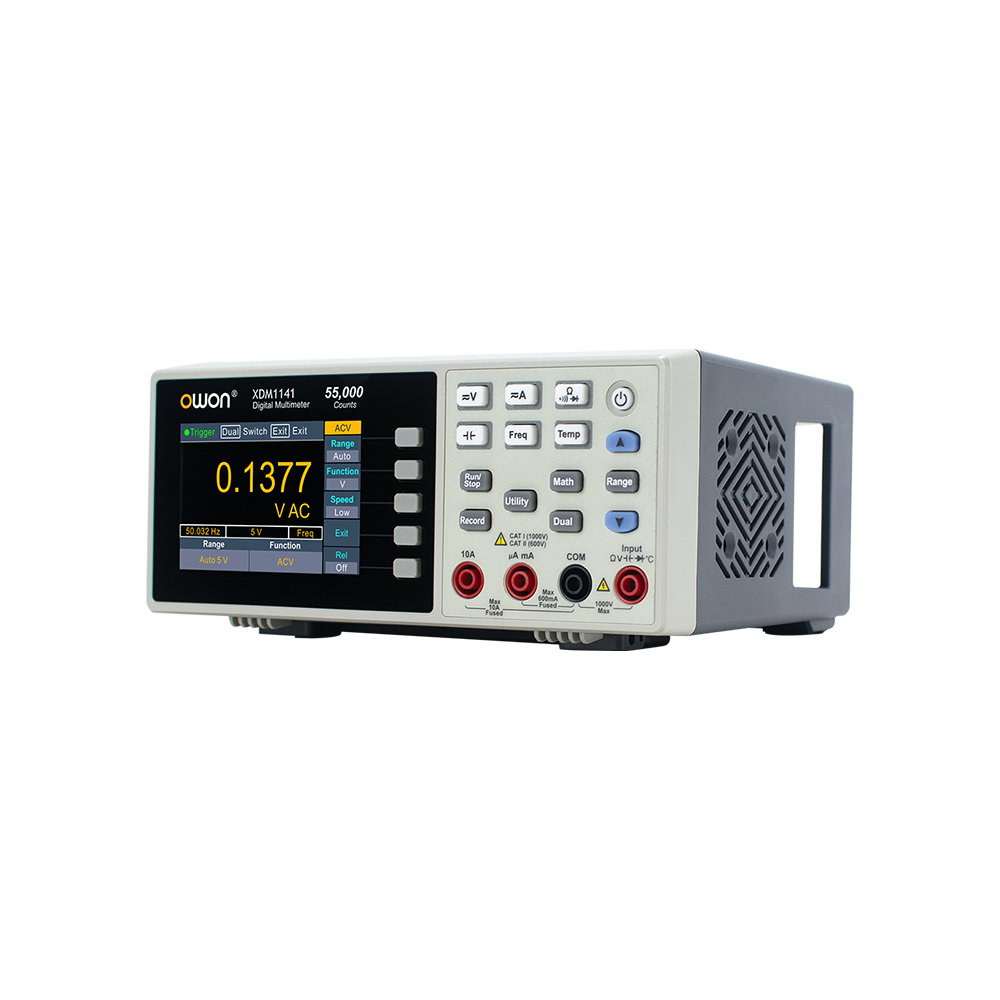

OWON 4 1/2 digits XDM1141 Bench-type Digital Multimeter

+ 3.5 inch (480x320) high resolution LCD

+ 55000 counts, DC voltage accuracy up to 0.05%

+ Up to 65 readings per second

+ Dual line display supported

+ Trend analysis accessible in chart mode

+ SCPI support
+ Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer

Send Inquiry
Product Details





Specifications



Measurement Range

Resolution

Accuracy ±(% of reading +LBS )

DC Voltage

50.000mV

0.001mV

0.1%+10

500.00mV

0.01mV

0.05%+5

5.0000V

0.0001V

0.05%+5

50.000V

0.001V

0.05%+5

500.00V

0.01V

0.1%+5

1000.0V

0.1V

0.1%+10

AC Voltage

500mv-750v

20Hz~45Hz

1% + 30

45Hz~65Hz

0.5% + 30

65Hz~1KHz

0.7% + 30

DC Current

500uA

0.01uA

0.15%+20

5000uA

0.1uA

0.15%+10

50mA

0.001mA

0.15%+20

500mA

0.01mA

0.15%+10

5A

0.0001A

0.5%+10

10A

0.001A

0.5%+10

AC Current

500uA-500mA

20Hz-1KHz

0.5%+20

5A-10A

1.5%+20

Resistance

500Ω

0.01Ω

0.15%+10

5KΩ

0.0001KΩ

0.15%+5

50KΩ

0.001KΩ

0.15%+5

500KΩ

0.01KΩ

0.15%+5

5MΩ

0.0001MΩ

0.3%+5

50MΩ

0.001MΩ

1%+10

Frequency

10.000Hz–60MHz

/

±(0.2%+10)

Capacitance

50nF-500uF

/

2.5%+10

5mF-50mF

5%+10

Diode

3.0000 V

0.0001V

/

Continuity

1000 Ω

0.1Ω

Adjustable threshold

Temperature

K type,PT100

Max Display

55,000 counts

Data-logging Function

Logging Duration

15ms-9999.999s

Logging Length

1,000 points



General

Display Screen

3.5- inch TFT LCD with resolution 480*320

Dimensions (W×H×D)

 200 x 88x 150 (mm)

Device Weight

 Approximately 0.5kg

Support
Accessories

The accessories subject to final delivery.

  • Power Cord
  • Quick Guide
  • USB Cable
  • Multimeter Lead
  • Fuse
  • Alligator Clip (optional)
