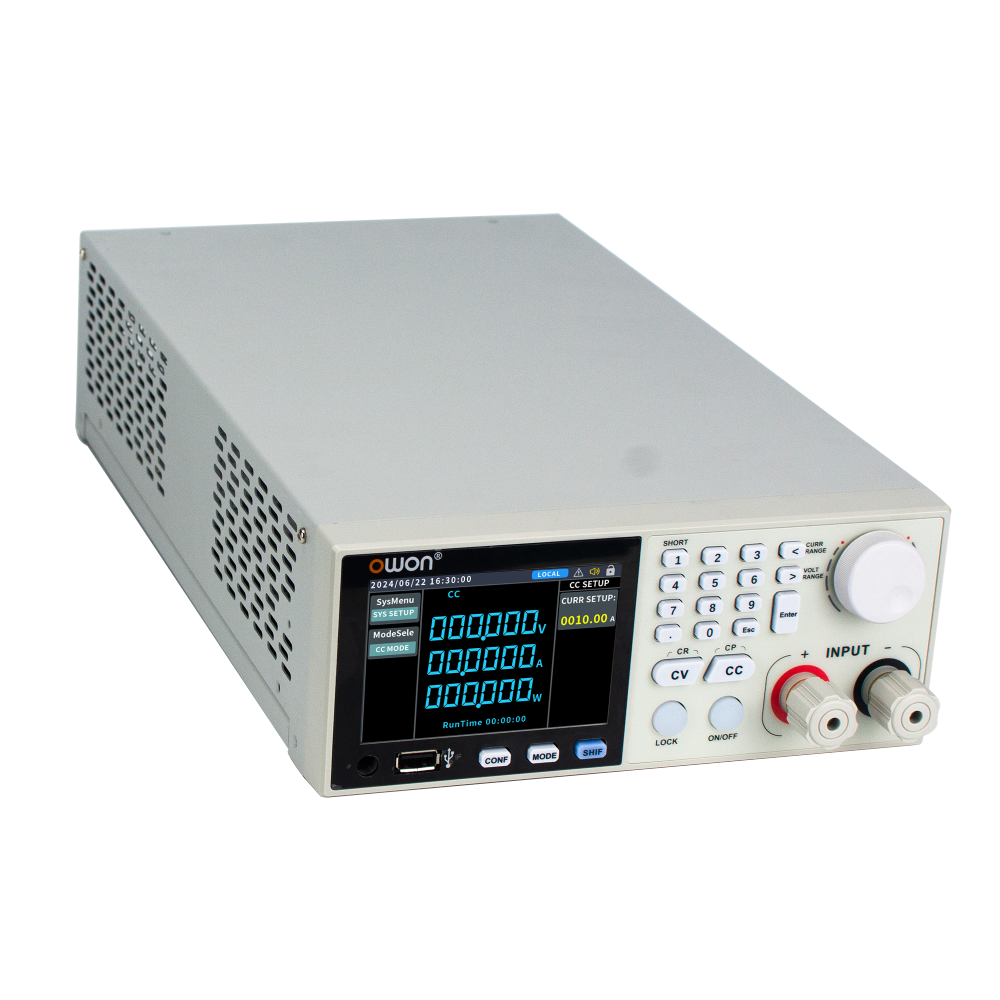

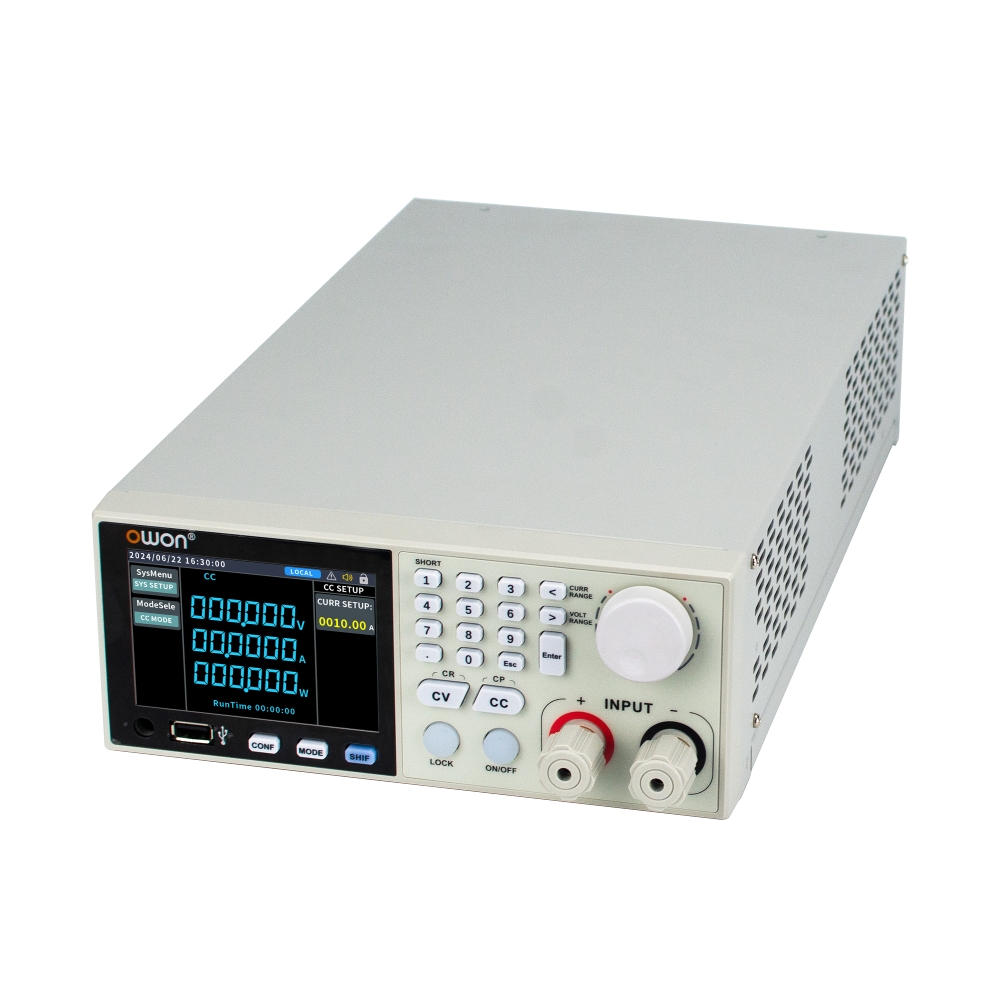

OEL8500 Series DC Electronics Load

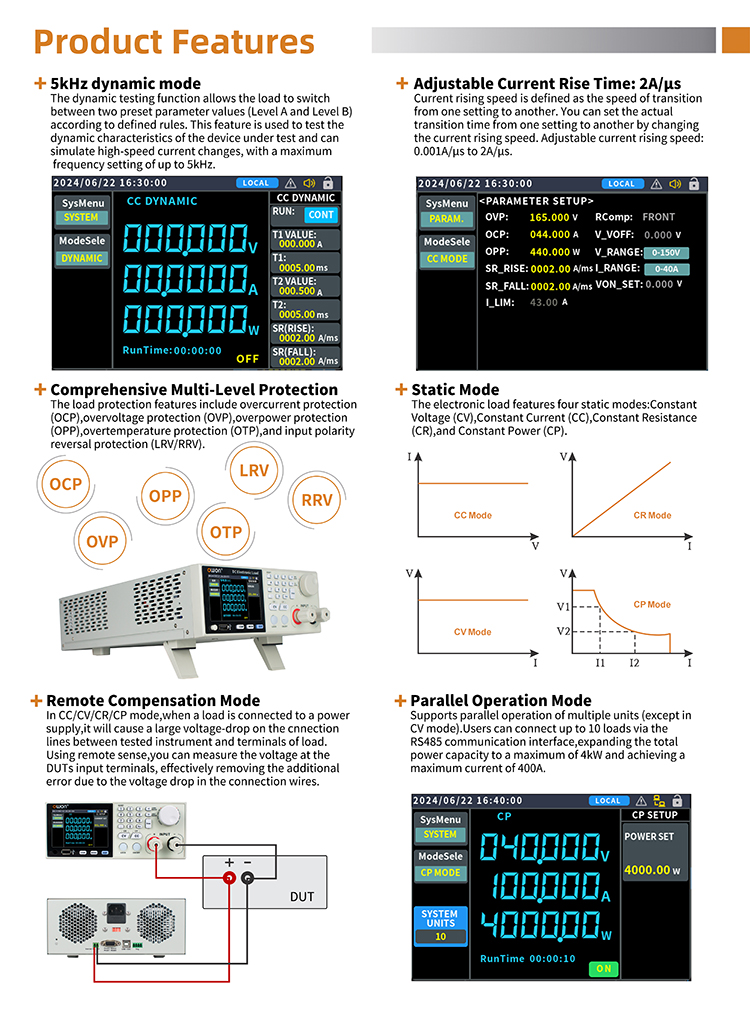

+ Readback resolution: 1 mV/0.1 mA
+ Overvoltage/Overcurrent/Overpower/Overtemperature/Reverse Voltage protection
+ 4 static modes: CC, CV,CR,CP
+ Supports CC dynamic mode and short-circuit simulation
+ Adjustable current rise time range: 0.001A/μs~2A/μs
+ Supports multi-unit parallel operation (except CV mode), Communicates via RS485, and can be expanded to 10 units for a total of 4kW

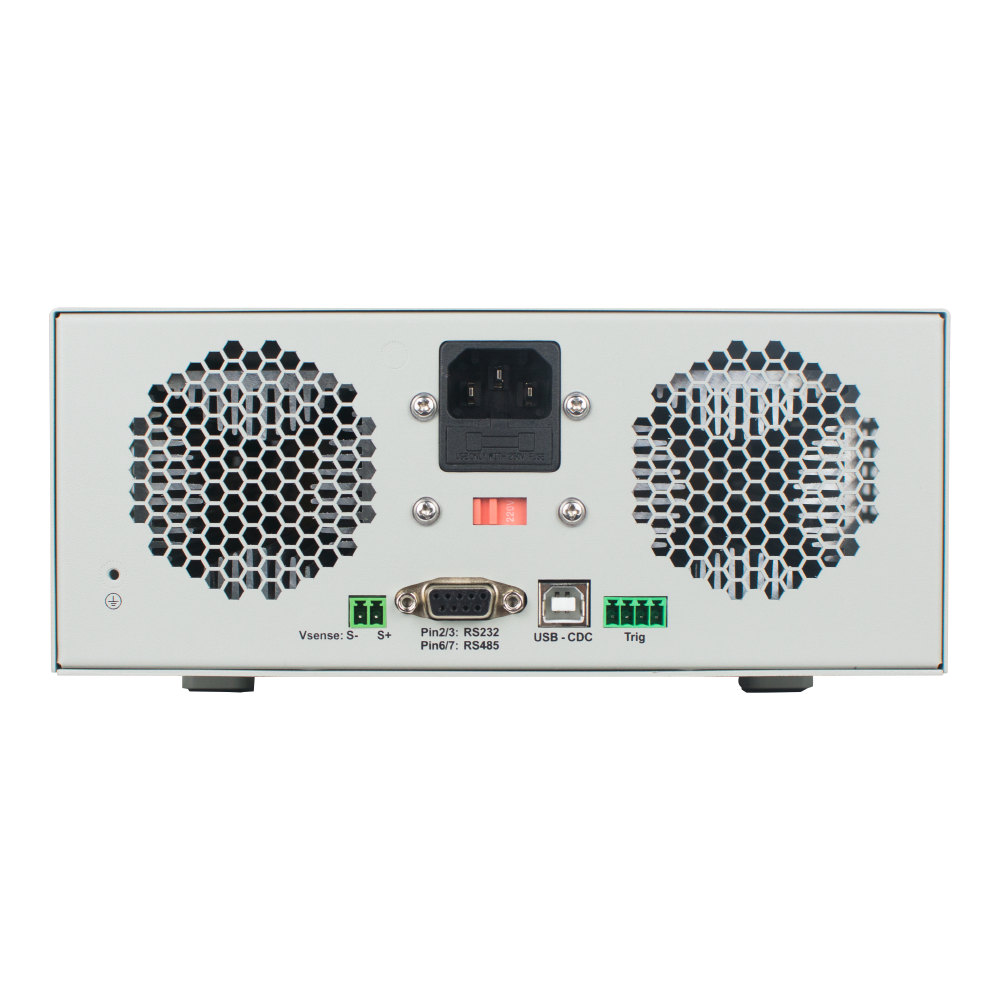

+ Built-in RS232 and USB Device interfaces, supporting SCPI protocol and host computer communication
+ 1/2 2U, standard rack mount size

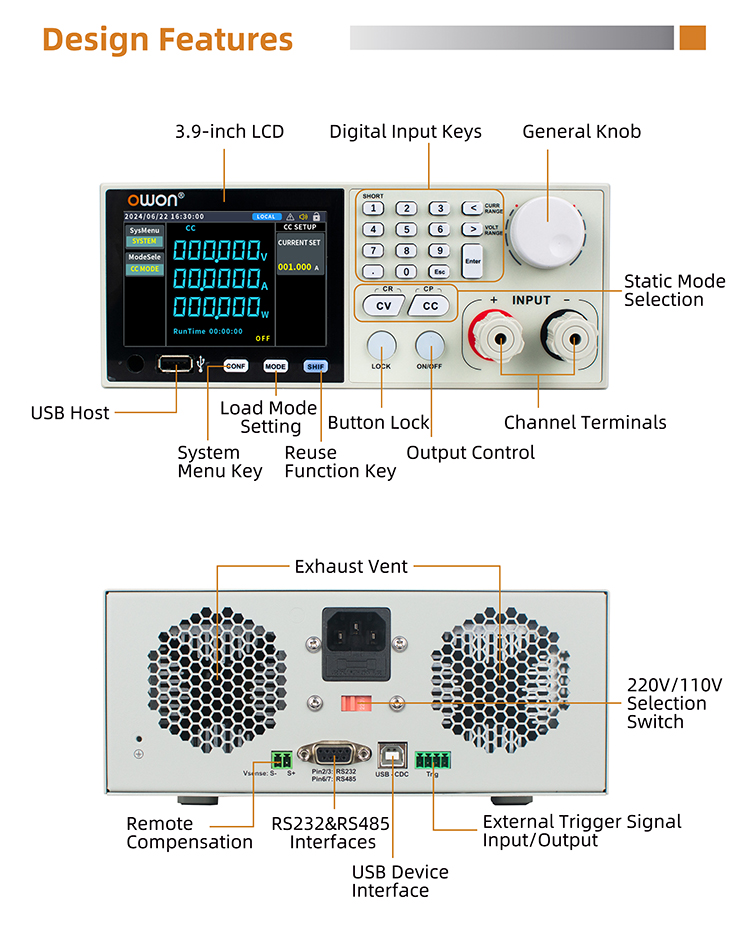

+ 3.9-inch TFT LCD display
E-mail Us
|
Model |
OEL8512 |
OEL8512B |
OEL8512C |
OEL8511 |
OEL8511B |
OEL8511C |
|
|
Rated input |
Voltage |
0 - 150V |
0 - 300V |
0 - 600V |
0 - 150V |
0 - 300V |
0 - 600V |
|
Current |
0 - 40A |
0 - 20A |
|||||
|
Power |
400W |
200W |
|||||
|
Minimum Operate Voltage |
1.1V@40A |
0.8V@20A |
|||||
|
Range（CV） |
0 - 150V |
0 - 300V |
0 - 600V |
0 - 150V |
0 - 300V |
0 - 600V |
|
|
Resolution CV） |
1mV |
1mV |
|||||
|
Range (CC) |
0 - 40A |
0 - 20A |
|||||
|
Resolution (CC) |
1mA |
1mA |
|||||
|
Range (CR) |
0.05Ω - 7.5kΩ |
0.05Ω - 7.5kΩ |
|||||
|
Range (CP) |
400W |
400W |
|||||
|
Resolution (CP) |
10mW |
10mW |
|||||
|
Dynamic Mode |
|||||||
|
T1&T2 |
0.1ms - 50s |
0.1ms - 50s |
|||||
|
Rise/Fall Slope |
0.01A/ms - 2000A/ms |
0.01A/ms - 2000A/ms |
|||||
|
Minimum Rise Time |
20us |
20us |
|||||
|
Readback Range（V） |
0 - 150V |
0 - 300V |
0 - 600V |
0 - 150V |
0 - 300V |
0 - 600V |
|
|
Readback Resolution (V) |
1mV |
||||||
|
Readback Range（A） |
0 - 40A |
0 - 20A |
|||||
|
Readback Resolution (A) |
0.1mA |
0.1mA |
|||||
|
Readback Range (w) |
0 - 400W |
0 - 200W |
|||||
|
Readback Resolution (w) |
10mW |
10mW |
|||||
|
Protection |
Overpower Protection, Overvoltage Protection, Overcurrent Protection, Overtemperature |
||||||
|
Short |
CC mode, CV mode, CR mode |
||||||
|
Interface |
RS-232 support SCPI |
||||||
|
Safety |
Complies with European EMC Directive 89/336/EEC for Class A testing and measurement products |
||||||
|
Withstand Voltage |
500V/DC, 1mA (output to ground); 1.5kVAC, 5mA (input to ground) |
||||||
|
Dimension (L/W/D) |
215 x 88 x 375 mm |
||||||
|
Weight (KG) |
5 |
4.2 |
|||||
The accessories subject to final delivery.
-

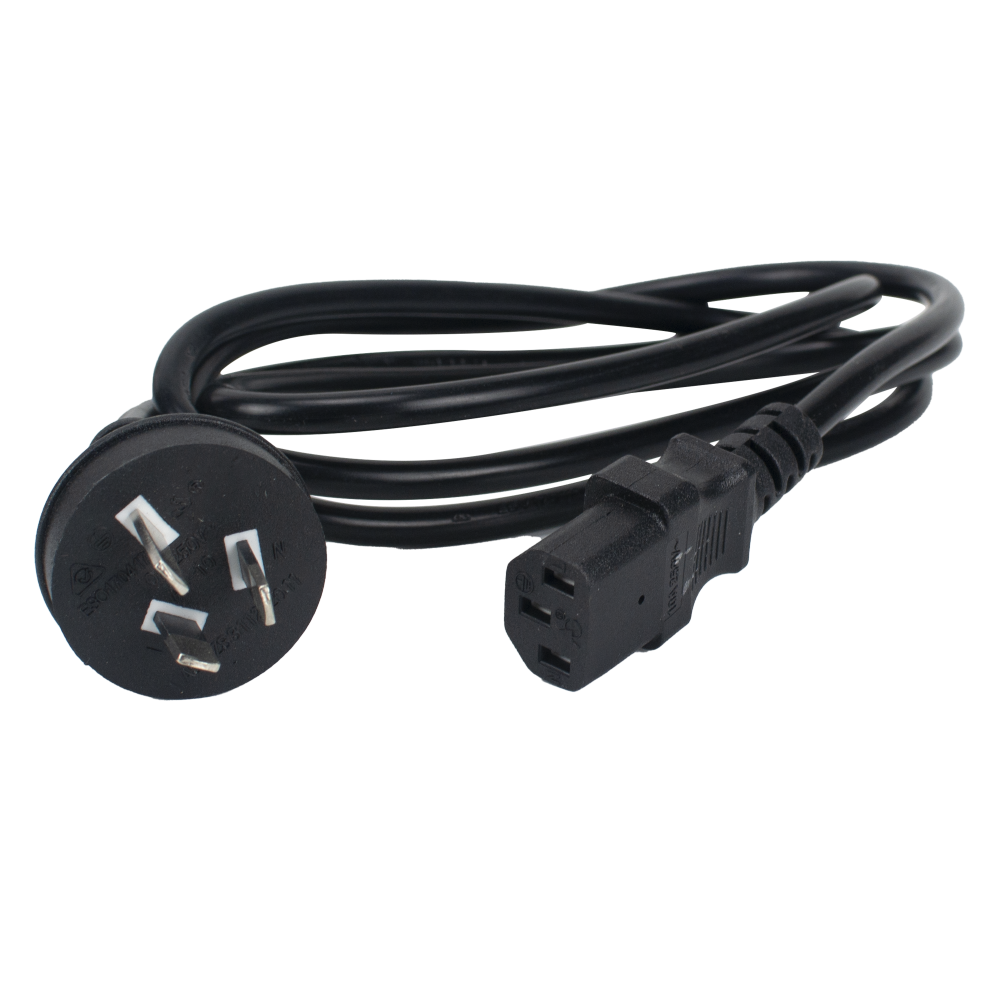

Power Cord -

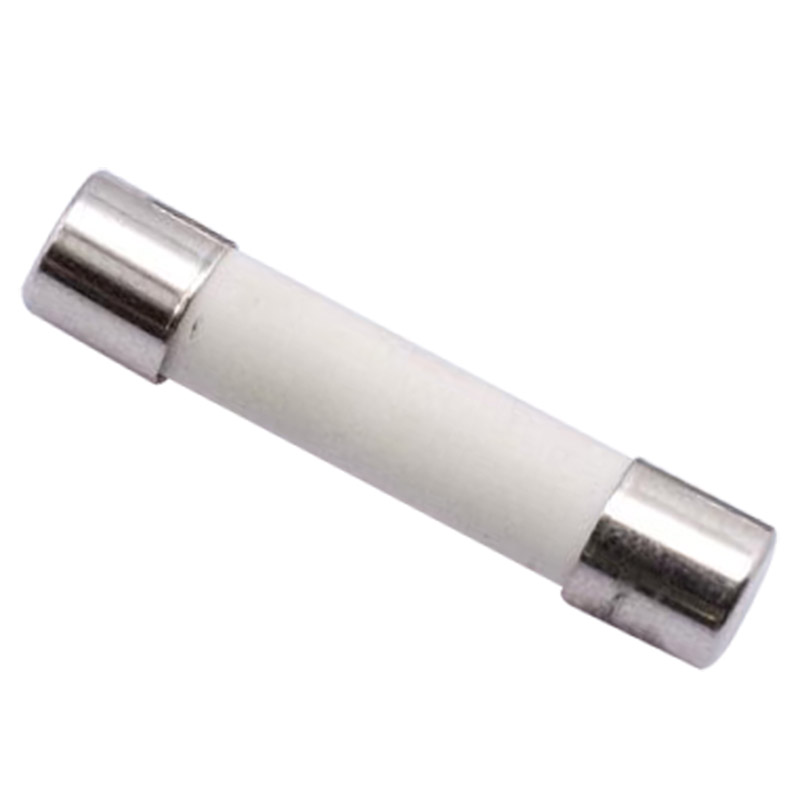

Fuse -
User Manual -
Handle (optional) -

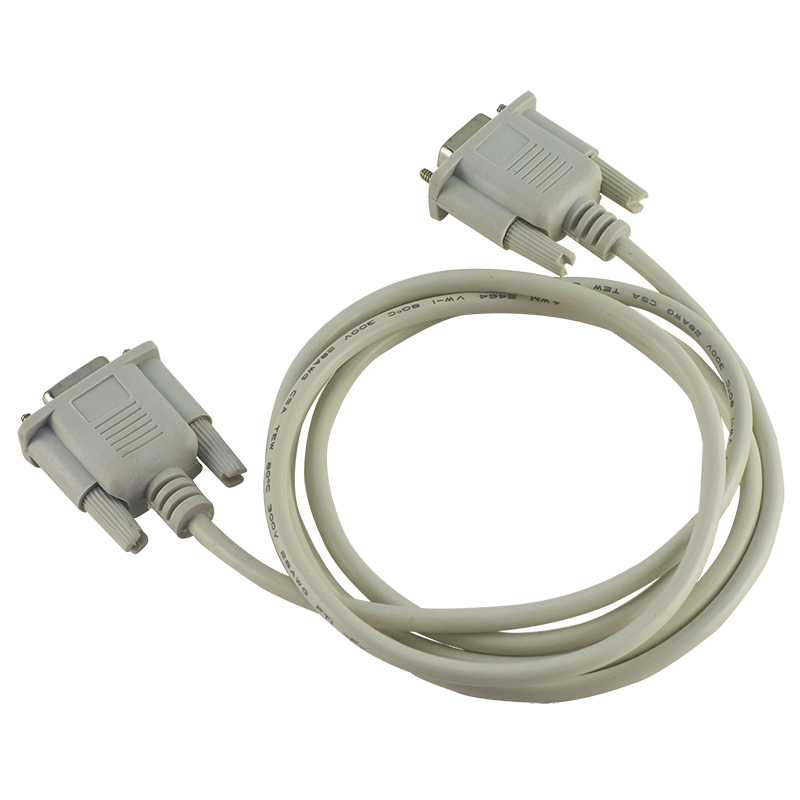

RS232 Com Cable (optional) -

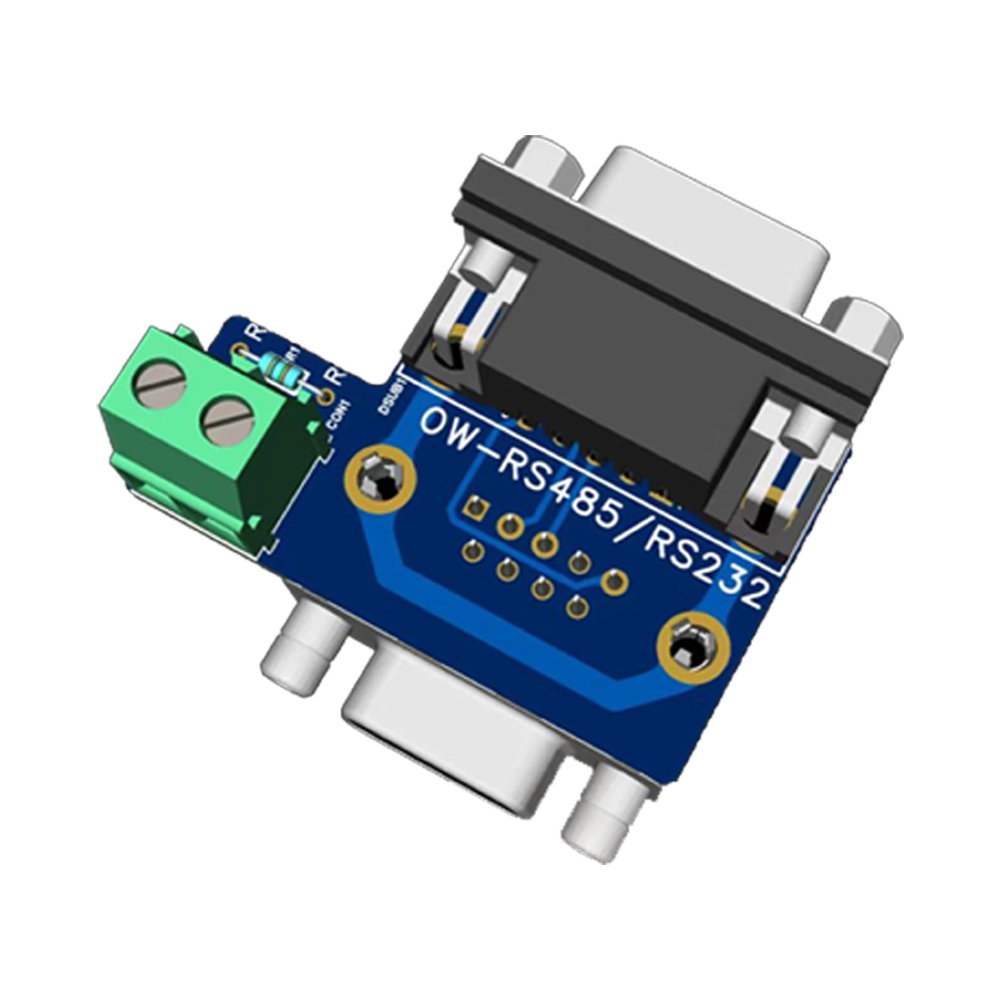

Parallel Module (optional) -

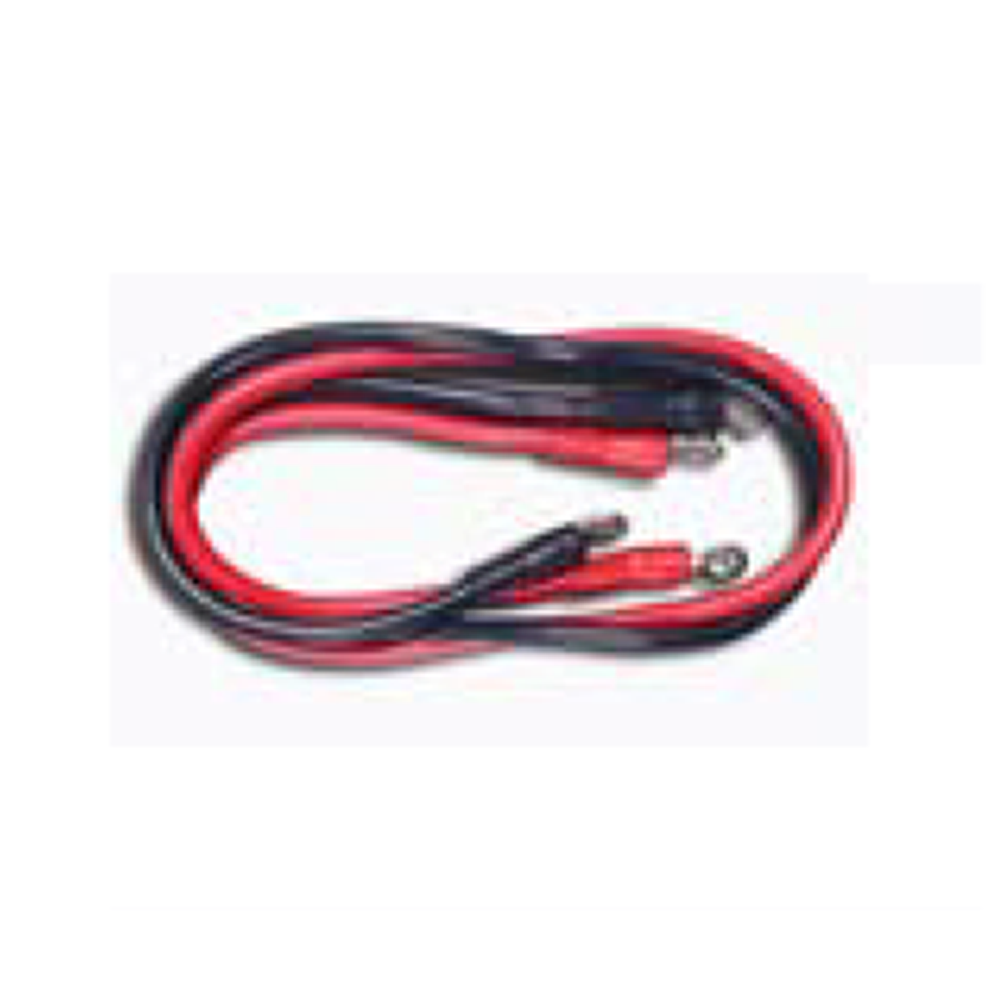

Test Leads (20A) (optional)
