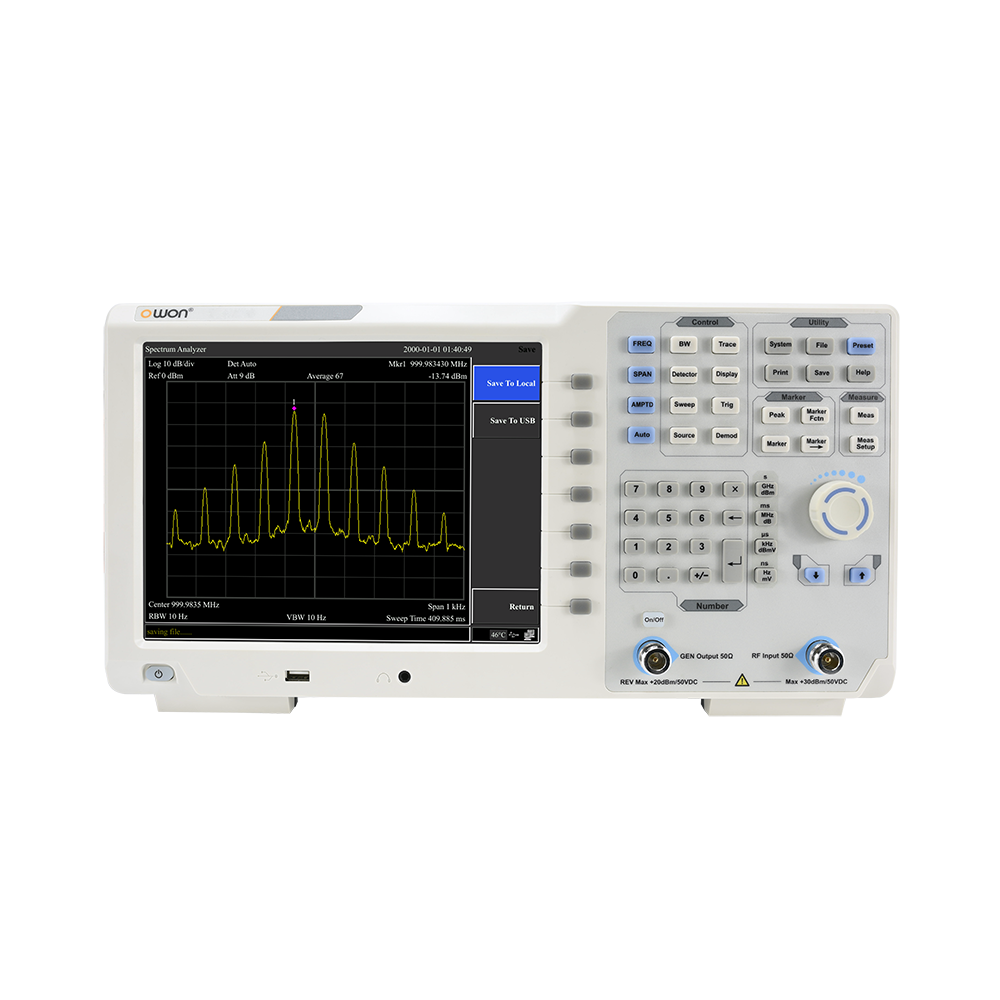

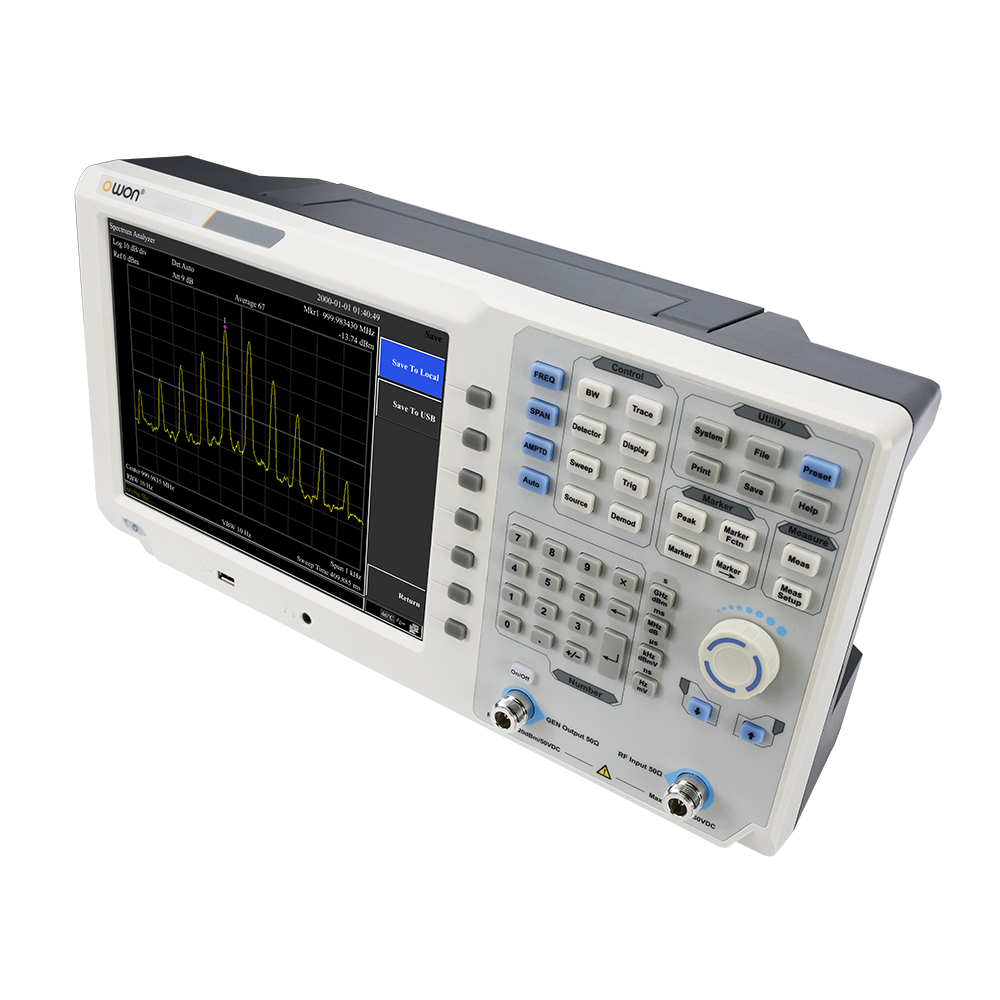

XSA1000TG Series Spectrum Analyzer

- Frequency Range from 9 kHz up to 7.5 GHz
- -160dBm Displayed Average Noise Level
- Phase Noise -98dBc/Hz @1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)
- EMI Pre-compliance Test Kit, optional EMC test software
- Standard Pass/Fail on-site test alert ability
- Up to 7.5 GHz Tracking Generator Kit
- 10.4 inches display

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' Spectrum Analyzer, Frequency Analyzer, 9 kHz 1.5 GHz 3.6 GHz Analyzer,10.4 inches Spectrum Analyzer from us. We have many products in stock at your choice. Consult the quotation with us now.

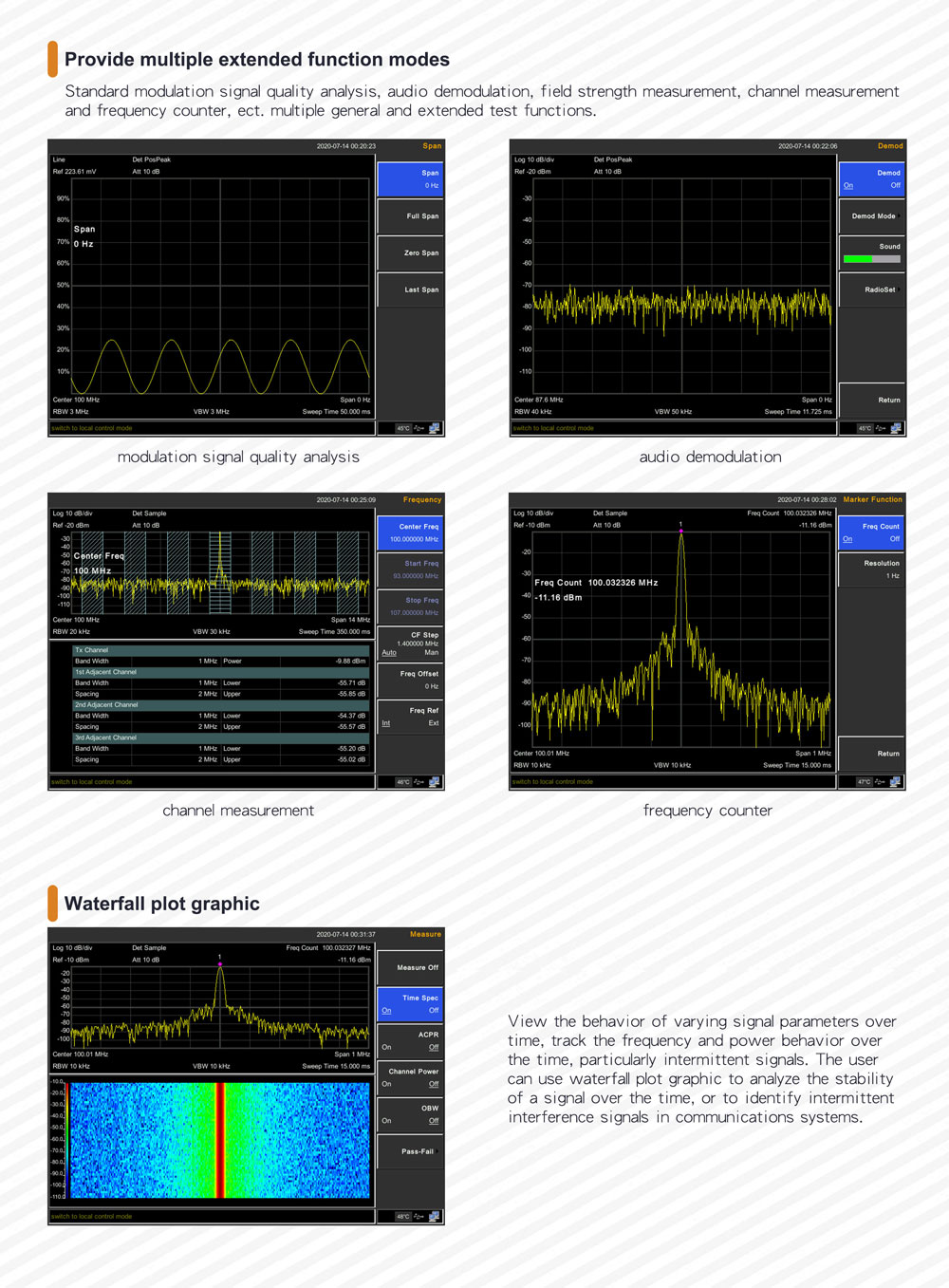

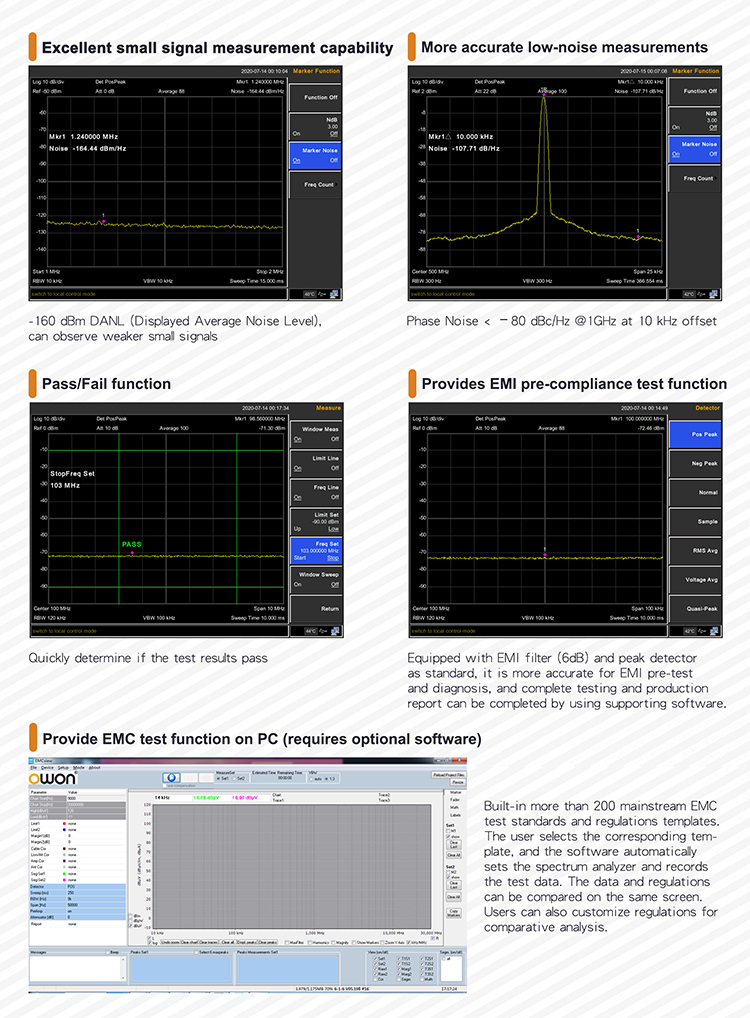

1. 10 Hz Minimum Resolution Bandwidth (RBW)
Digital IF technology offers a minimum bandwidth of 10Hz,allowing excellent signal resolution when separation of closely spaced signals is required.

2. Measure -130dB small signal at 10Hz RBW
Offers a DANL (displayed average noise level) down to -130 dBm, which is able to measure smaller signals.


3. Phase noise:<-80 dBc/Hz @1 GHz @ 30 KHz offset
Excellent phase noise performance - <-80dBc/Hz @30KHz enables users to evaluate most synthesizers and signal generators.

4. EMI filter and peak detector kit
OWON offers an EMI filter and peak detector kit to help evaluating EMI levels for pre-compliance testing.



Model XSA1015TG) XSA1032(TG) XSA1036(TG) XSA1075(TG)
Range 9kHz-1.5 GHz 9kHz-3.2 GHz 9kHz-3.6 GHz 9kHz-7.5 GHz
Resolution 1Hz
Frequency span
Range 0 Hz,100 Hz to maximum frequency of device
Accuracy ± span /(swept points -1)
Internal reference
Reference frequency 10.000000 MHz
Reference frequency accuracy ±[(days from last calibrate × freq aging rate)+ temperature stability + initial accuracy ]
Temperature stability <2.5ppm (15℃ to 35℃) <1ppm(15℃ to 35℃)
Aging rate <1ppm/year
Marker frequency resolution span/(the number of sweep points -1)
Uncertainty ±(freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution)
Frequency counter
Resolution 1 Hz,10 Hz,100 Hz,1 kHz
Accuracy ±(marker freq × freq reference uncertainty + counter resolution)
Resolution bandwidth (-3 dB) 10Hz to 500kHz(in 1 to 10 sequence), 1MHz,3MHz
Resolution filter shape factor <5:1 nominal(Digital implement, similar to Gauss Pattern)
Accuracy <5% nominal
Video bandwidth (-3 dB) 10Hz to 3MHz
Amplitude Specification
Amplitude and electric level
Amplitude measurement range DANL to +20 dBm, close the preamplifier
Reference electric level -80 dBm to +30 dBm,0.01dBm steps
Preamplifier 20 dB,nominal
Input attenuator range 0~40 dB,1 dB steps 0~50 dB,1 dB steps
Max input DC voltage 50 VDC
Max continuous power +30dBm,average continuous power
Displayed average noise level(DANL)Input attenuation 0 dB,1Hz resolution bandwidth
Preamp off 1 MHz~10 MHz -140dBm(nominated)
10 MHz~1GHz -140dBm(nominated)
XSA1015TG:1GHz~1.5 GHz -138 dBm( nominated )
XSA1032TG:1GHz~3.2GHz -138 dBm( nominated )
XSA1036TG:1GHz~3.6 GHz -138 dBm( nominated )
XSA1075TG:1GHz~3.6GHz -138dBm( nominated );4GHz~5GHz,-133dBm( nominated )
5GHz~6GHz,-128dBm( nominated );6GHz~7GHz-123dBm( nominated );
7GHz~7.5GHz,-118dBm( nominated )
Preamp on 1 MHz~10 MHz -160dBm(nominated)
10 MHz~1GHz -160dBm(nominated)
XSA1015TG: 1GHz~1.5 GHz -158 dBm( nominated )
XSA1032TG: 1GHz~3.2 GHz -158 dBm( nominated )
XSA1036TG: 1GHz~3.6 GHz -158 dBm( nominated )
XSA1075TG: 1GHz~4GHz  -158dBm( nominated );4GHz~5GHz -153dBm( nominated )
5GHz~6GHz  -148dBm( nominated );6GHz~7GHz -143dBm( nominated )
7GHz~7.5GHz -138dBm( nominated )
Phase noise 20 ℃ ~30 ℃,fc=1 GHz
Phase noise <-82 dBc/Hz @10 kHz offset <-98 dBc/Hz @10 kHz offset
<-100 dBc/Hz @100 kHz offset
<-110 dBc/Hz @1 MHz offset
Level display range
Log scale coordinate 1dB ~255dB
Linear scale coordinate 0 to reference level
level unit dBm, dBuW, dBpW, dBmV, dBuV, W,V
Points 201~1001
Number of traces 5
Detectors Positive-peak, negative-peak, sample, normal, RMS
Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
Frequency response
  20℃ ~30℃,30%~70% relative humidity, 20 dB input attenuation, reference 50 MHz
Preamp off ±0.8 dB;
Preamp on ±0.9 dB;
Input Attenuation Switching Uncertainty 20℃ ~30℃, fc=50 MHz,Preamplifier Off, 20dB RF attenuation,input signal 1~40 dB
±0.5 dB
Absolute Amplitude Uncertainty 20℃ ~30℃, fc=50 MHz,RBW=1 kHz,VBW=1 kHz,peak detector, 20 dB RF attenuation,
Preamplifier Off ±0.4 dB,input signal= -20dBm
Preamplifier On ±0.5 dB, input signal= -40dBm
Uncertainty input signal range 0dbm~-50dbm
±1.5 dB
VSWR input 10 dB RF attenuation,1 MHz~1.5GHz input 20 dB,1 MHz~7.5GHz
Distortion and spurious response
Second harmonic distortion fc ≥ 50 MHz,Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 ℃ to 30 ℃
Third-order intermodulation fc ≥ 50 MHz
+2 dBm (NSA1015/NSA1032/NSA1036)
1 dB Gain Compression fc ≥ 50 MHz, 0 dB RF attenuation,Preamp off , 20 ℃ to 30 ℃
+2 dBm, nominal
Residual response connect 50 Ω load at input port,0 dB input attenuation,20 ℃ to 30 ℃
Input related spurious -30 dBm signal at input mixer,20 ℃ to 30 ℃
<-60 dBc
Sweep time and triggering
Span range 100Hz≤SPAN≤3GHz 10ms to 3000s
zero sweep width 1ms to 3000s
Mode Continue, single
Trigger Free run, video
Tracking generator
Output frequency range 100 kHz~1.5 GHz 100 kHz~3.2 GHz 100 kHz~3.6 GHz(Tracking generator)
35 MHz~3.6 GHz(Tracking generator)
100 kHz~7.5 GHz(Tracking generator)
Output power level range -30 dBm~0 dBm , -40 dBm~0 dBm ,
Output power level resolution 1dB
Output flatness +/-3 dB
Maximum safe reverse level Average total power:+30 dBm,DC : ±50 VDC
Inputs and Outputs
Front panel RF input connector 50 Ω,N-type female
Front panel track generator output 50 Ω,N-type female
10 M reference input 50 Ω,N-type female

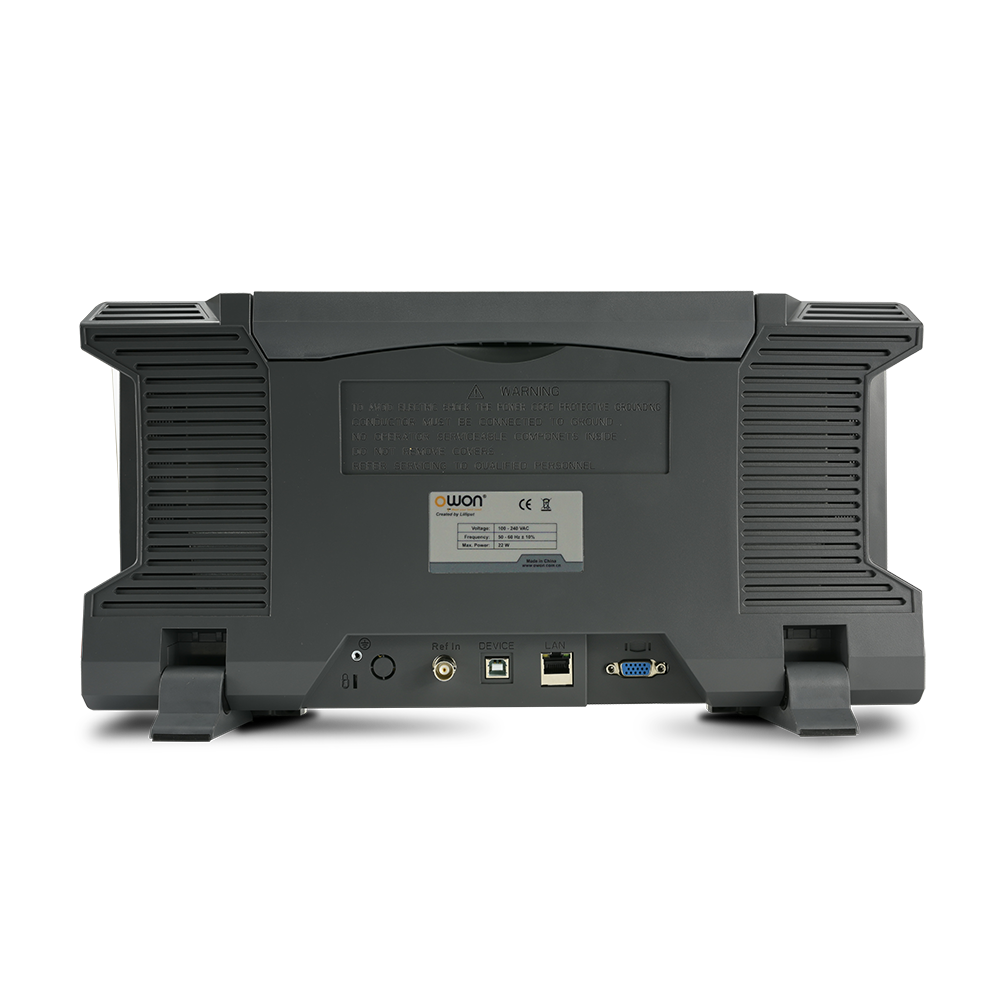

Communication port USB HOST, USB DEVICE, LAN, earphone port, REF and VGA
General techincal specification
Display TFT LCD,10.4 inches
Weight (without package) About 5 kg
Dimension (W × H × D) 421 × 221 × 115 (mm)
Working temperature 0~40 ℃
Storage temperature -20 °C to +60 °C
Power 100V~240V 50/60Hz


The accessories subject to final delivery.

  • Power Cord
  • CD Rom
  • Quick Guide

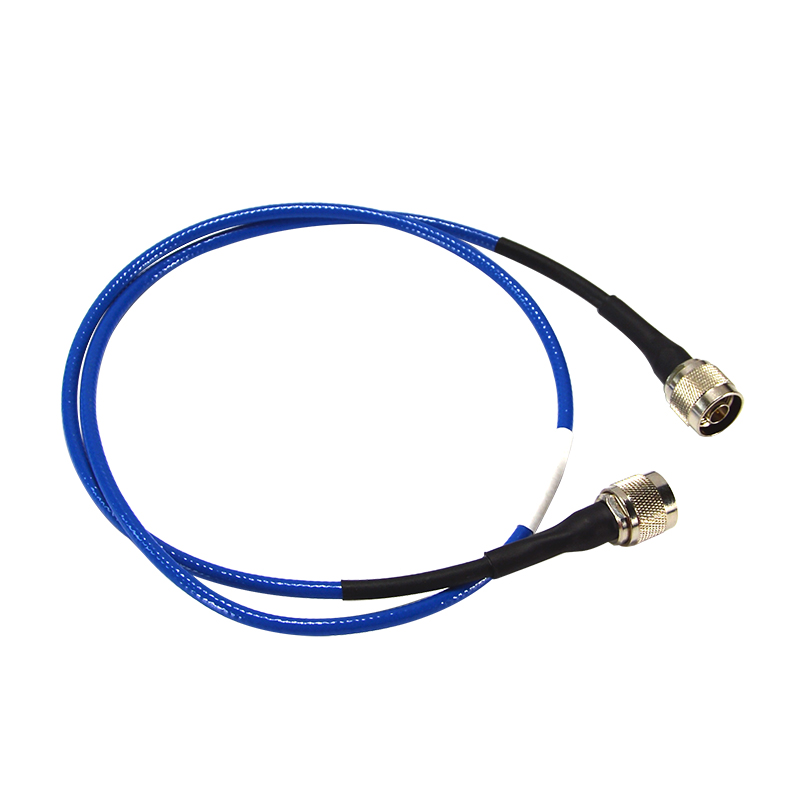

  • N-N Cable (optional)

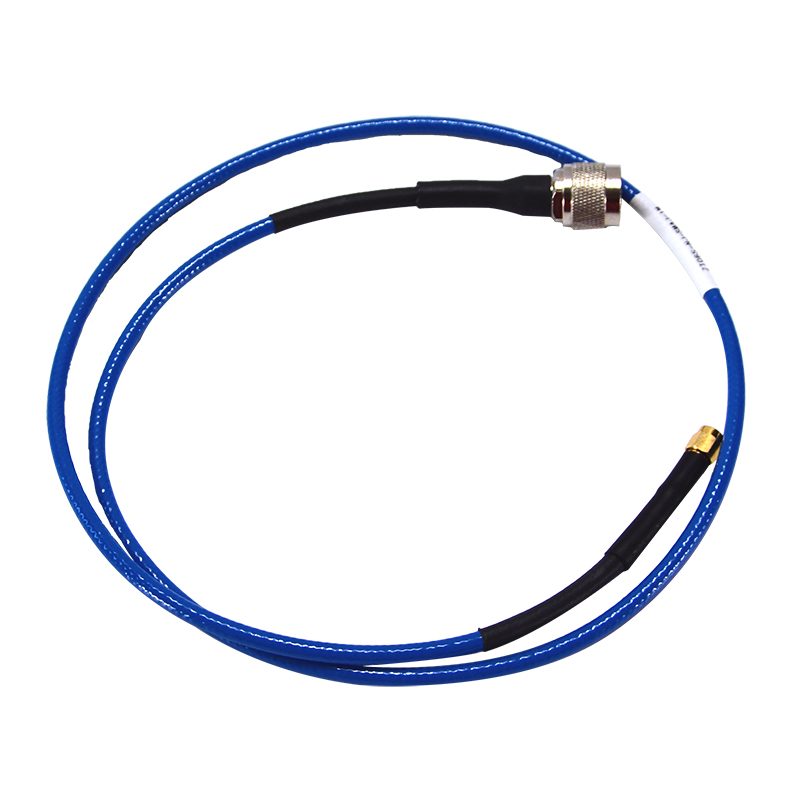

  • N-SMA Cable (optional)

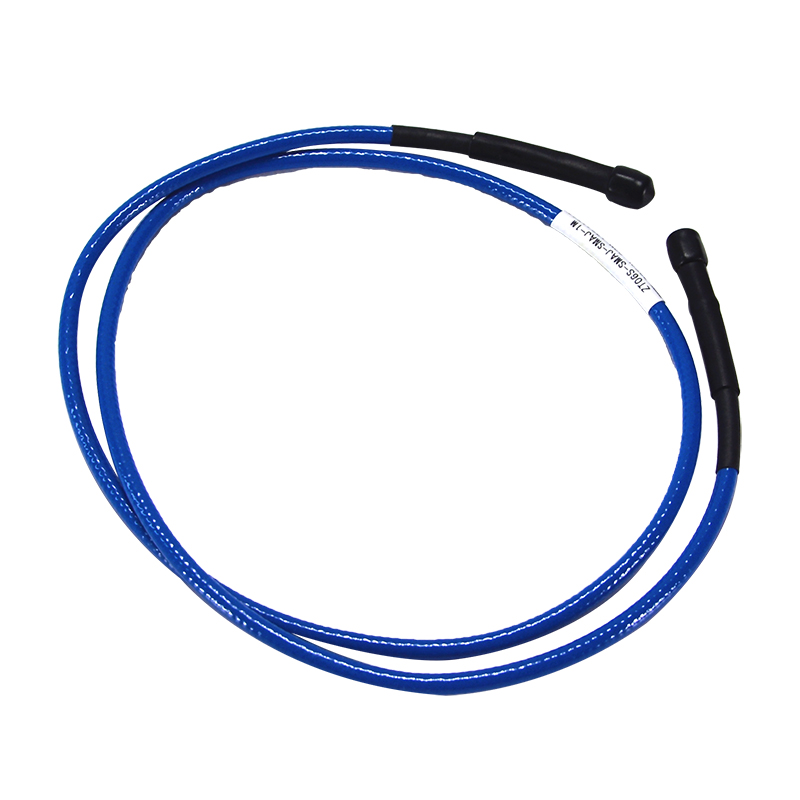

  • SMA-SMA Cable (optional)

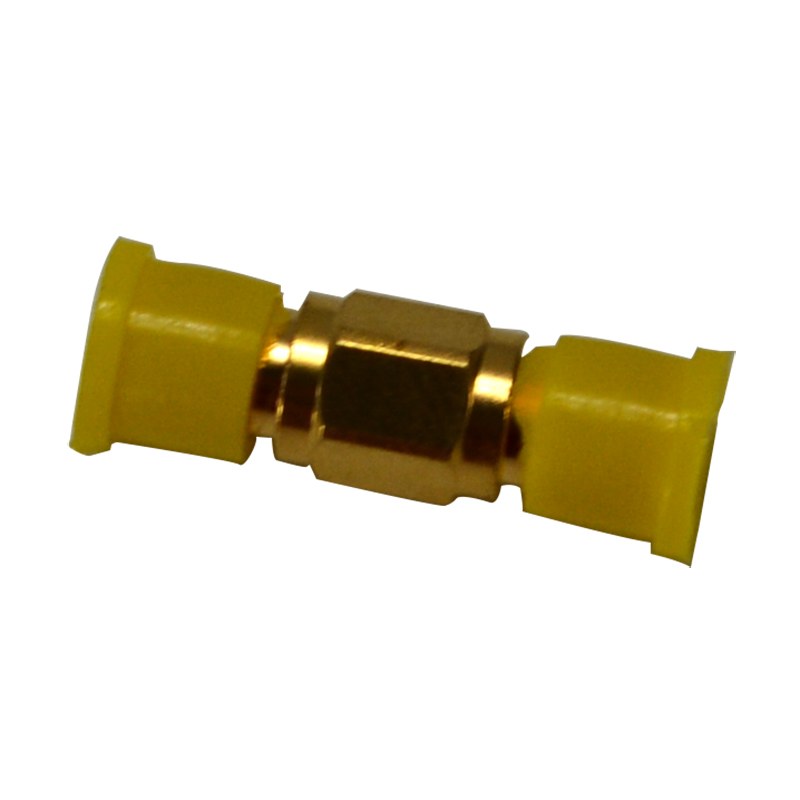

  • SMA Adaptor (optional)

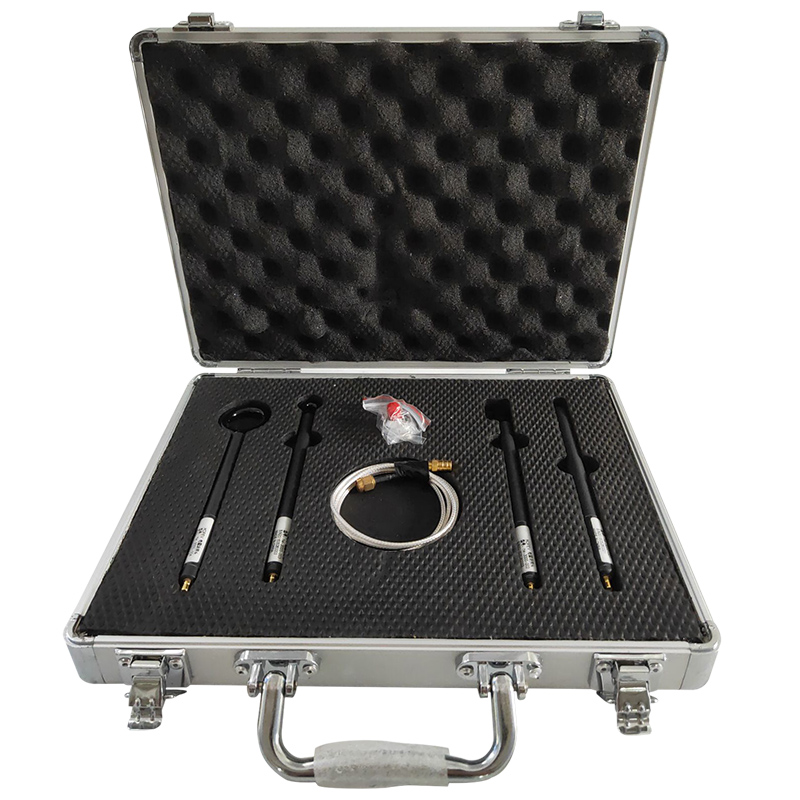

  • Near Field Probe (optional)

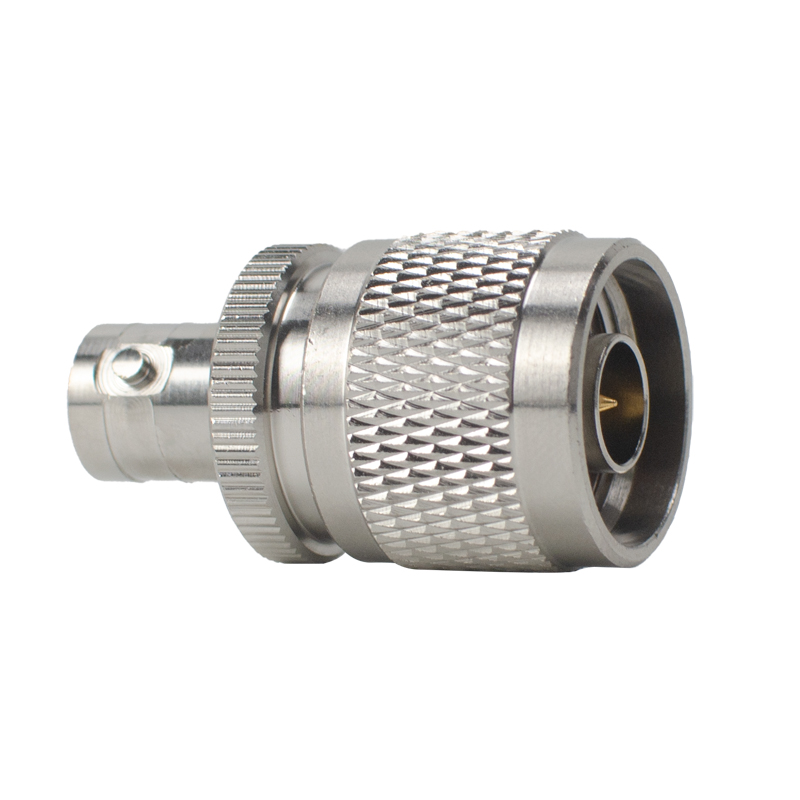

  • N-SMA Adaptor (optional)
