Application of OWON Tablet Oscilloscope in Volkswagen PASSAT B7 Car Maintenance (1)
- 10/5/2020 -

Use OWON tablet oscilloscope to measure driving CAN waveform

Nowadays, there are more and more control units in automobiles, and the communication of each control unit is generally carried out on the CAN line. CAN line is divided into drive CAN line, often called high-speed CAN, and the other is comfort CAN line, often called low-speed CAN. On the PASSAT B7, both types of CAN cables are in use. LIN line communication is also used between some control units and sensors and actuators. In this application series, we will introduce the test methods one by one. The circuit diagram is very important for waveform analysis. The circuit diagram below is a screenshot of the circuit diagram of the PASSAT B7.

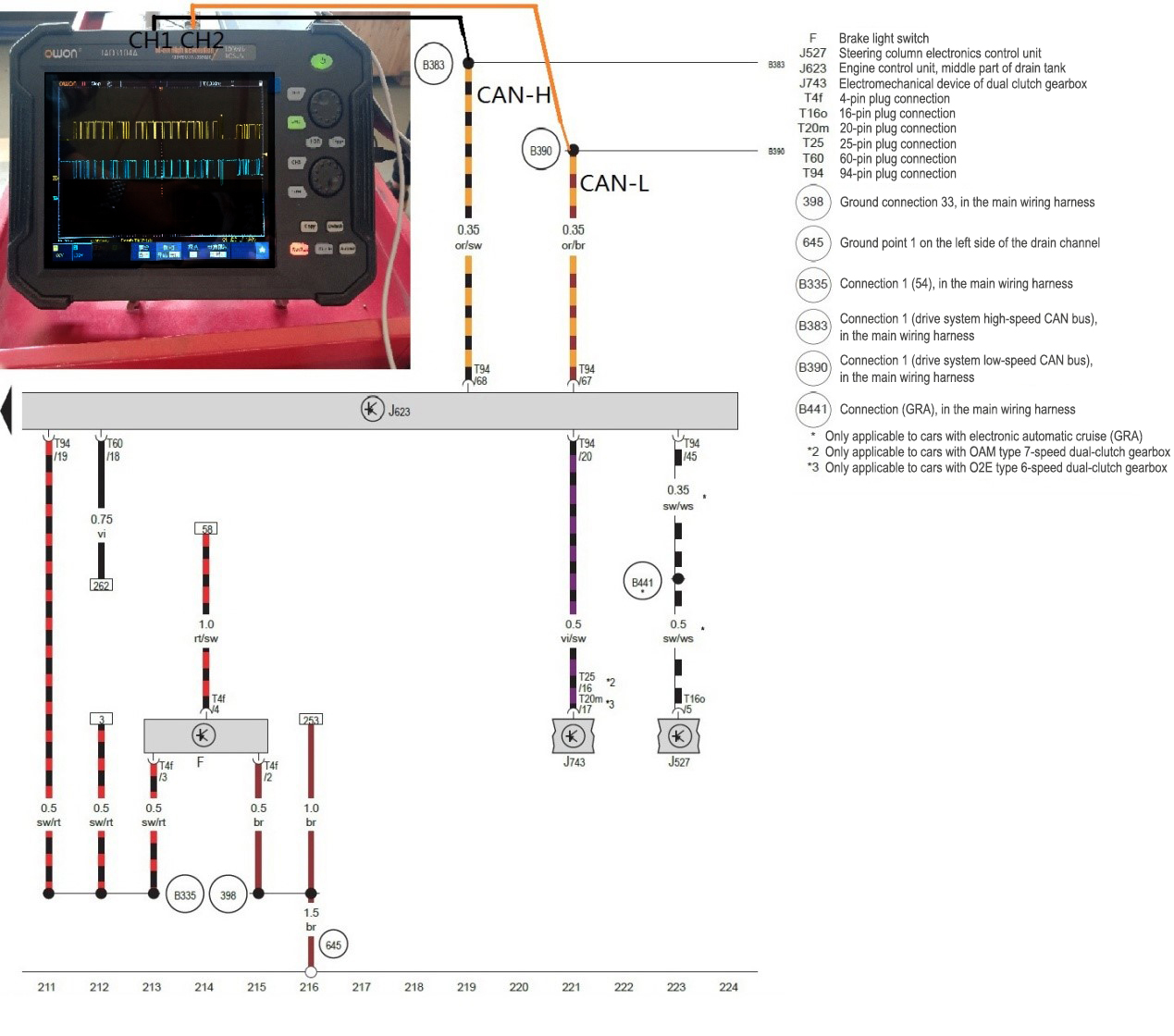

Circuit diagram:

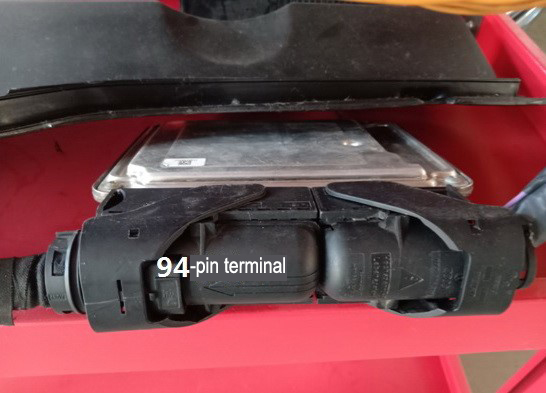

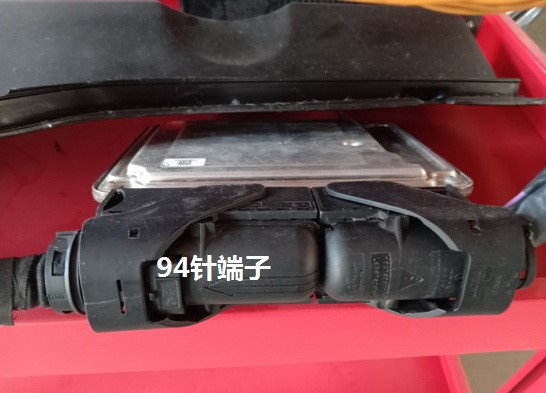

Connect channel 1 and channel 2 of TAO3104A tablet oscilloscope to the CAN line, CH1 to CAN-H, and CH2 to CAN-L. The CAN cable is located at the 68 and 67 terminals of the ECU94 pin plug.

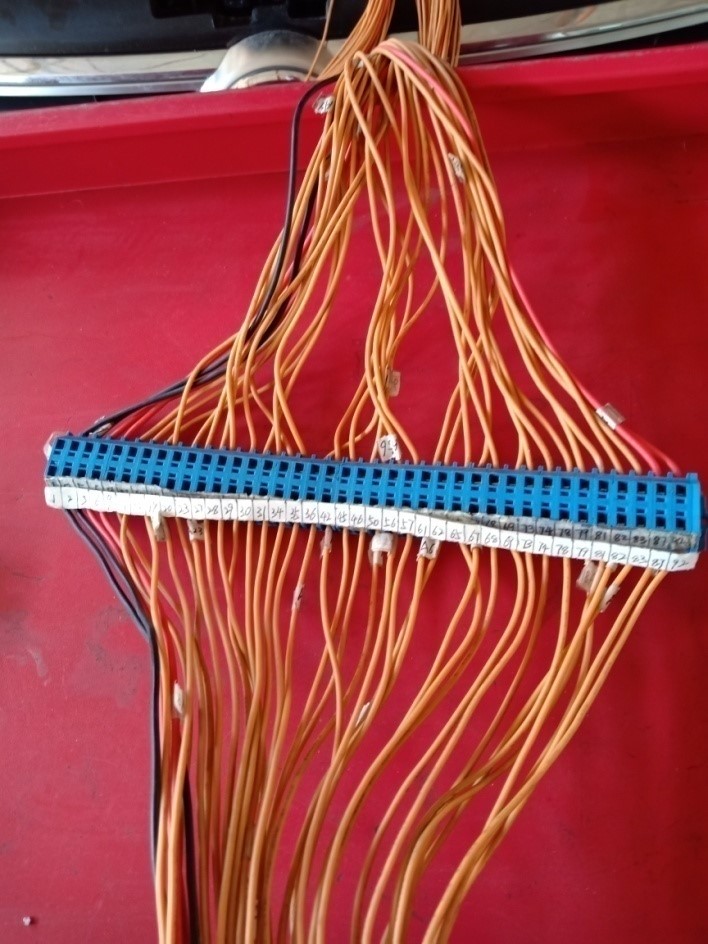

We use the external wiring harness to test, in the figure below, 68 is CAN-H, 67 is CAN-L.

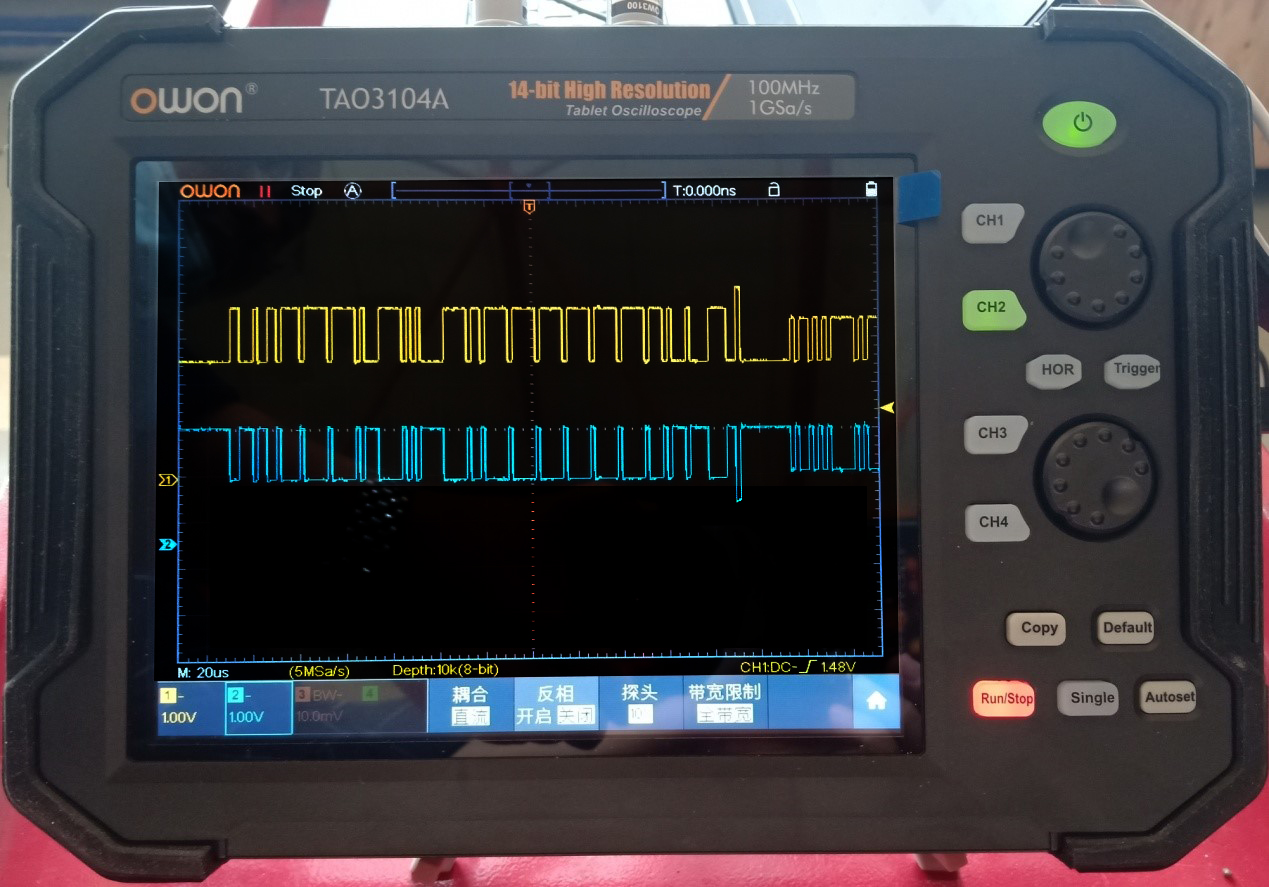

The waveform obtained by using TAO3104A tablet oscilloscope is as follows:




Waveform Features:

● The voltage of CAN-H varies from 2.5V to 3.5V, and the average voltage tested with a multimeter is 2.8V.

● The voltage of CAN-L varies from 2.5V to 1.5V, and the average voltage tested with a multimeter is 2.2V.

● Symmetrical waveform.

● The drive CAN line does not have the ability to operate in a single line.

● When the ignition switch is turned off, the drive CAN will stop "jumping". When the ignition switch is at "ON", it will start to "jump", that is, start to transmit information.
