Utilize TAO3000 series tablet oscilloscope to measure air damper sensor

Along with the living standard advances, as the convenient transportation tool, auto has been found everywhere. After generations’ evolution, the high-tech components have been introduced towards the auto, which causes the threshold of auto maintenance to turn high. To measure the auto sensor, DSO is a priority option over other equipment.

The air damper sensor, also been referred to as the “throttle opening sensor”, functions as the one to control the fuel injection level. This sensor transmits the signal of the air damper’s opening position and level to ECU, with which, ECU gives demand to allocate the fuel-injection.

For automatic gearbox through electronic control, the air damper sensor transmits a signal to adjust the gear position.

Considering the importance of the air damper sensors, most autos have been equipped with dual-signal sensors.

The purpose of the air damper sensor measurement is to check the motor status.

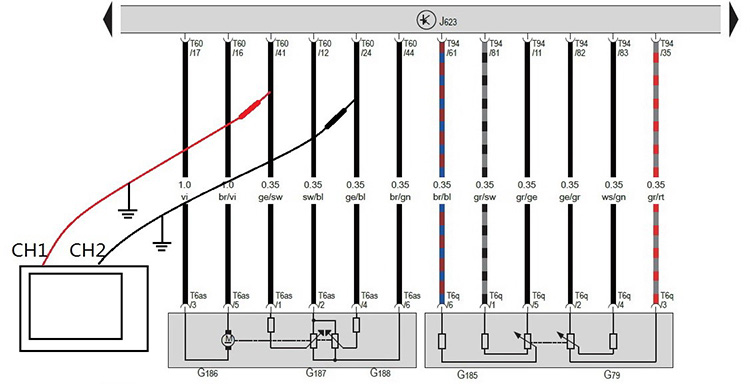

The following illustration shows the circuit diagram of Maiten B7, together with the measurement connection points of OWON TAO series DSO (to use TAO3104A as an example),

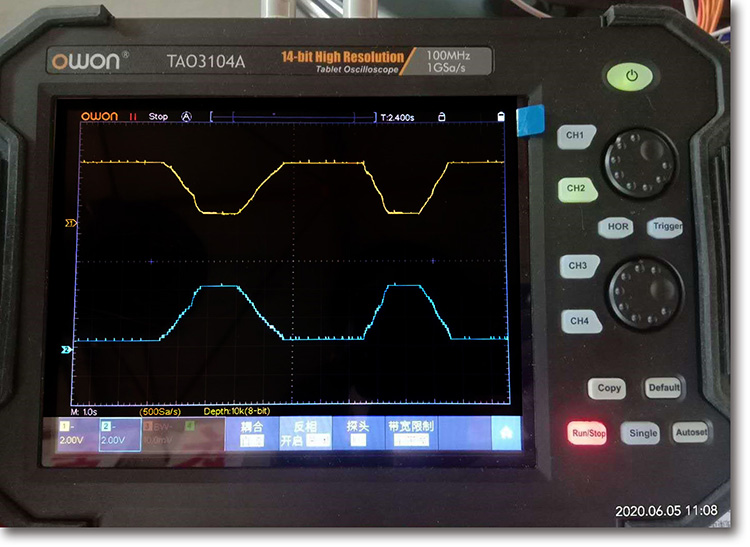

The captured signal comes as,

To check the sensor signal change onto OWON TAO3104A when working brake: when braking in heavy-down, the voltage of air damper position 1 reflected into CH 1 decreases, waveform shapes concave; the voltage of air damper position 2 reflected into CH 2 increases, waveform shapes convex, the sum of voltages from CH1 and CH2 reads 5V. To co-verify the two sensors from the air damper, when the sum larger or smaller than 5V, the general judgment will tell that something wrong with the sensor.

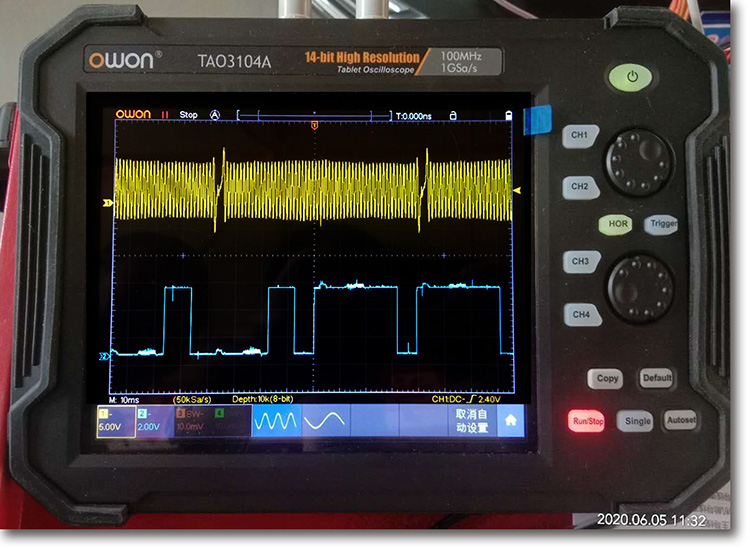

The captured waveform from the measurement of Maiten magneto-electric crankshaft and Hall Rifle camshaft sensor onto OWON TAO3104A as follows,
