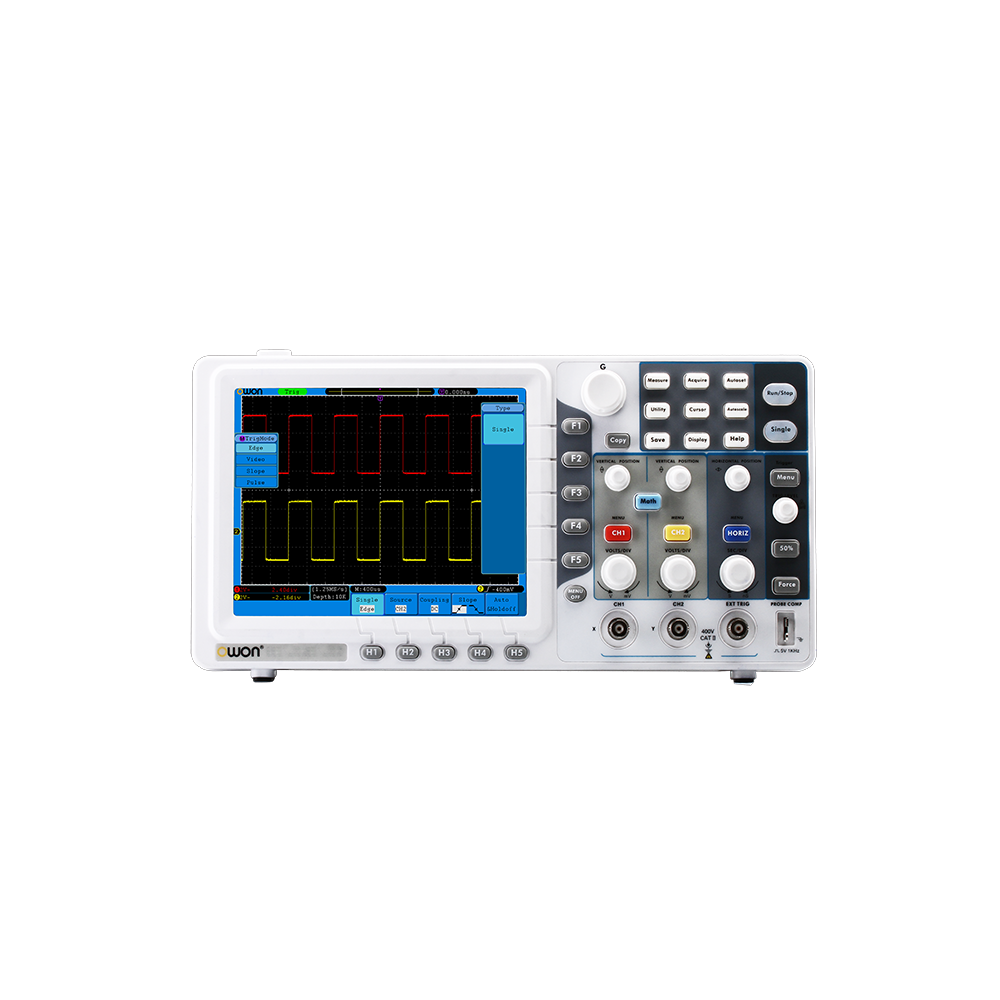

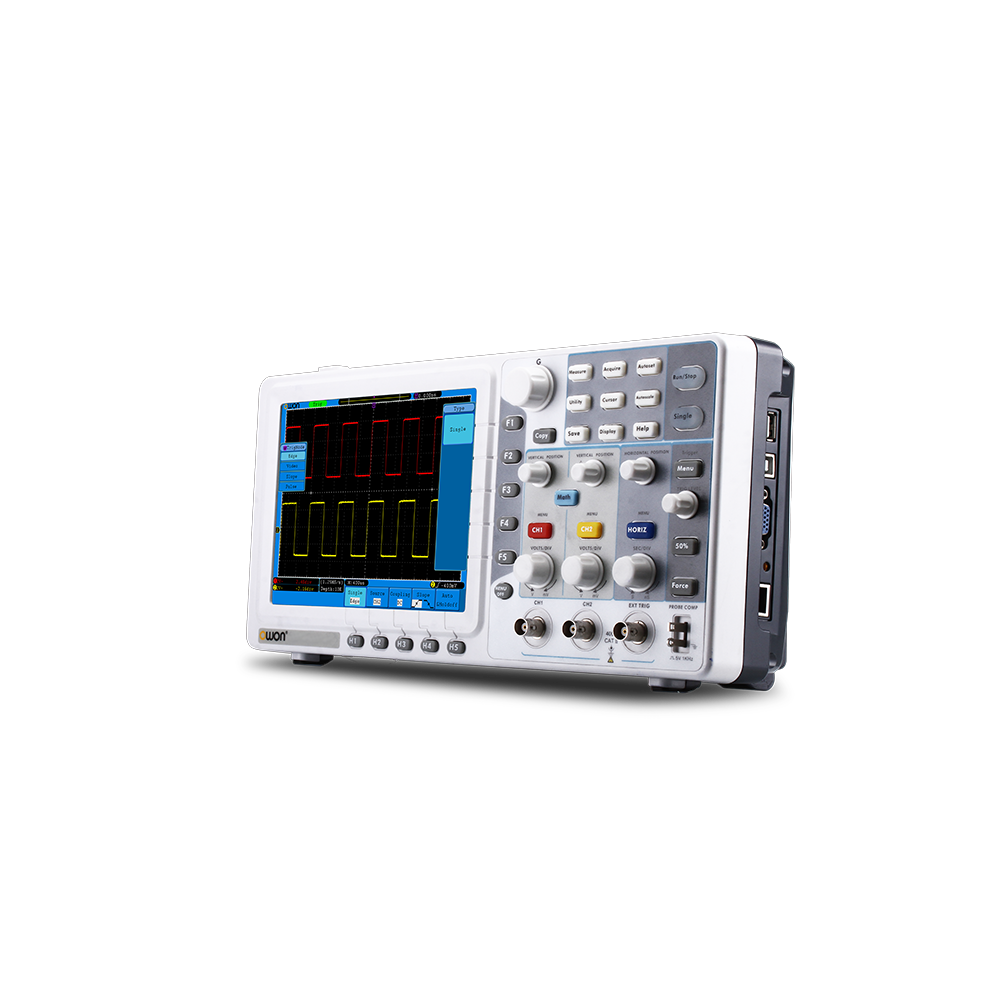

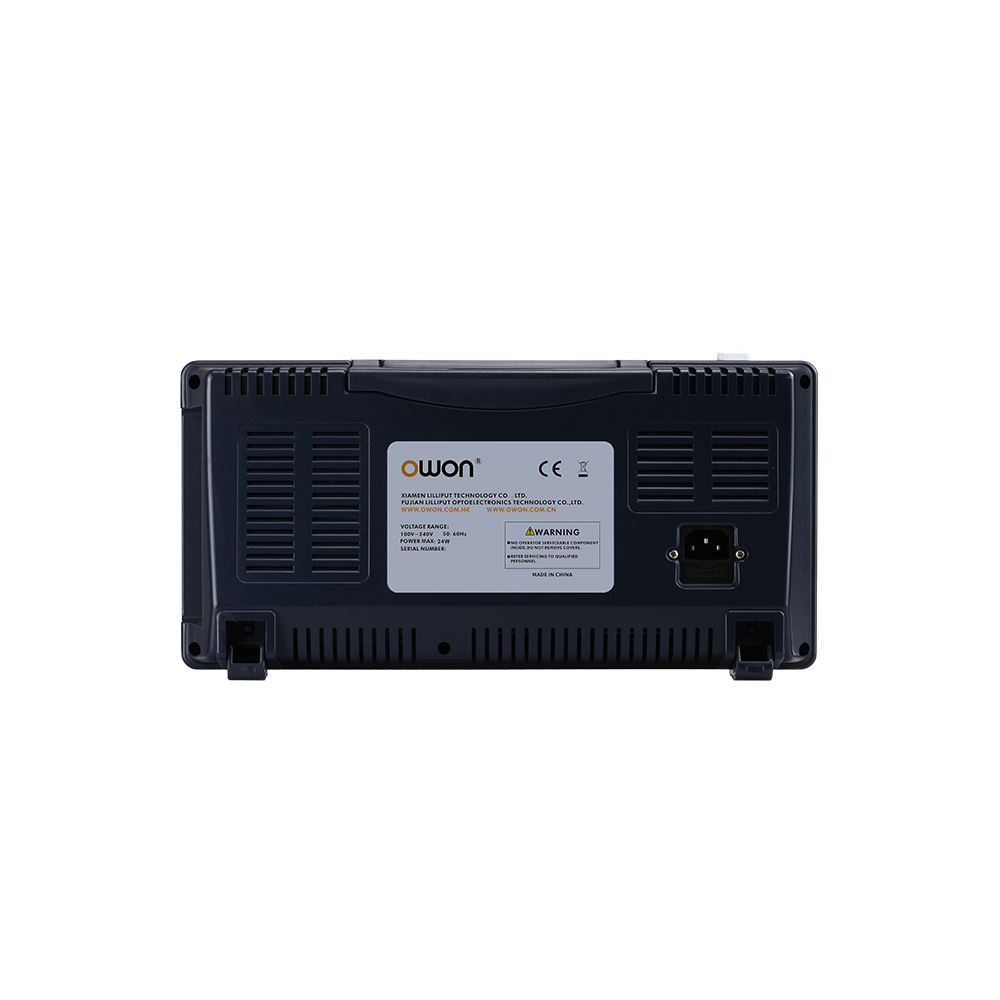

OWON SDS-E Series Digital Oscilloscope

- Bandwidth : 30MHz - 125MHz
- Sample rate : 500MS/s -1GS/s
- Ultra-thin body
- 8 inches high resolution LCD
- Pass / Fail function
- SCPI, and LabVIEW supported
- Digital filtering and current measurement
(excl. SDS5032E and SDS5052E)

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON sds-e series digital oscilloscope, battery oscilloscope, digital scope, dual trace oscilloscope, 100 mhz oscilloscope, xy oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.


1. 8 inches large display

8 inches  (800 x 600) TFT high resolution LCD display much detail. Horizontal 15 divisions and vertical 10 divisions, perfect than same level product.

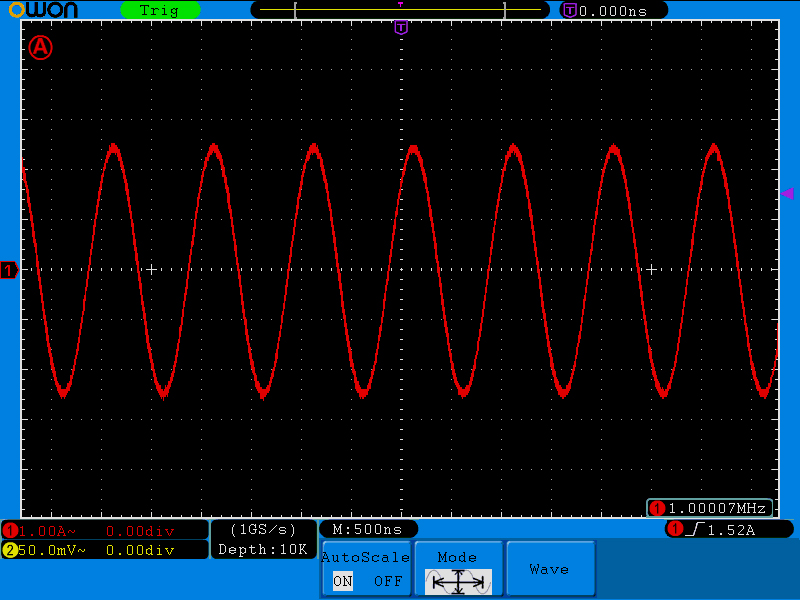

2. Auto-scale function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

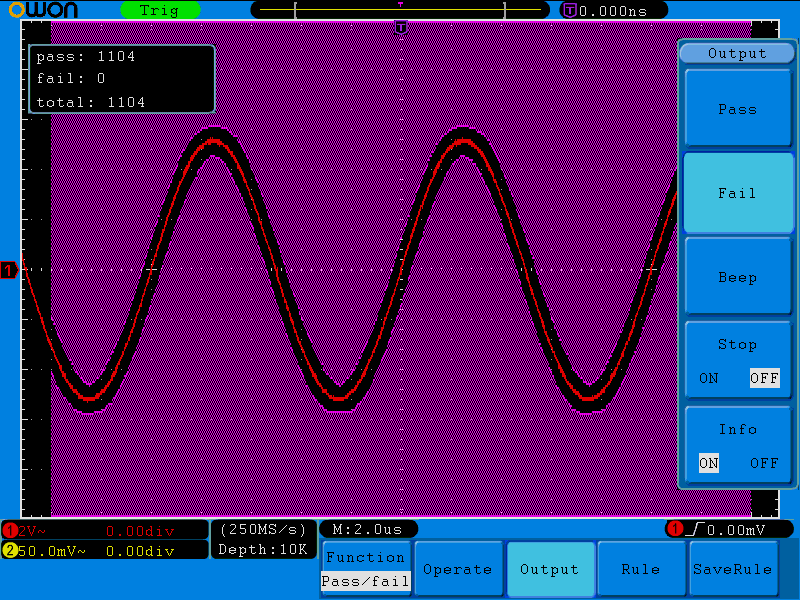

3. Pass/Fail function

Pass/Fail function can compare the template signal edit by user (horizontal and vertical occupation) with input signal. Meet the requirement for long-term signal monitor, production monitor, filter and control.

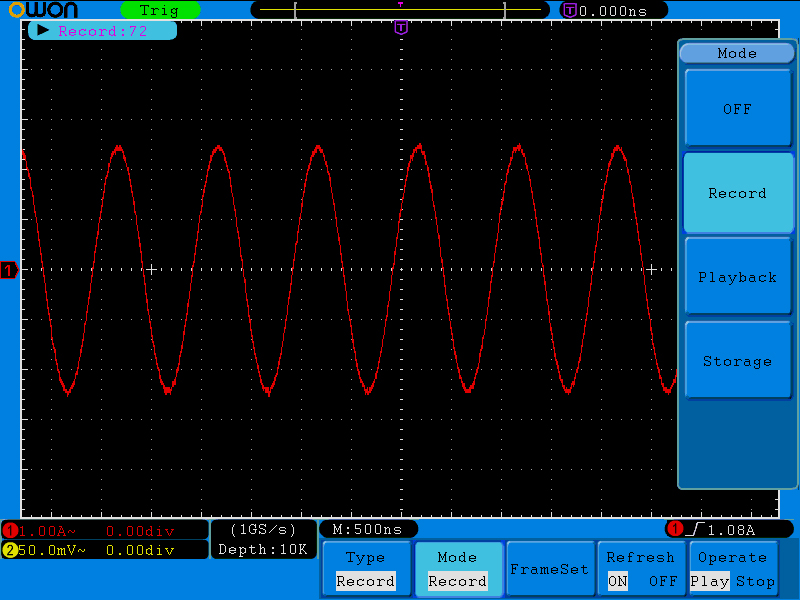

4. Waveform Record/Play

SDS series waveform record/play function support 2-channel waveform record. Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.



Specifications

Model SDS5032E SDS5052E SDS6062E SDS7072E SDS7102E SDS7122E
 Bandwidth 30MHz 50MHz 60MHz 70MHz 100MHz 125MHz
 Sample Rate (real time) 500MS/s 1GS/s
 Horizontal Scale (s/div) 5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div,
step by 1~2~5
 Channel 2 + 1 (external)
 Display 8" color LCD, 800 × 600 pixels
 Record Length 10K 1M
 Vertical Resolution (A/D) 8 bits (2 Channels simultaneously)
 Vertical Sensitivity 5mV/div~5V/div (at input) 2mV/div~10V/div (at input)

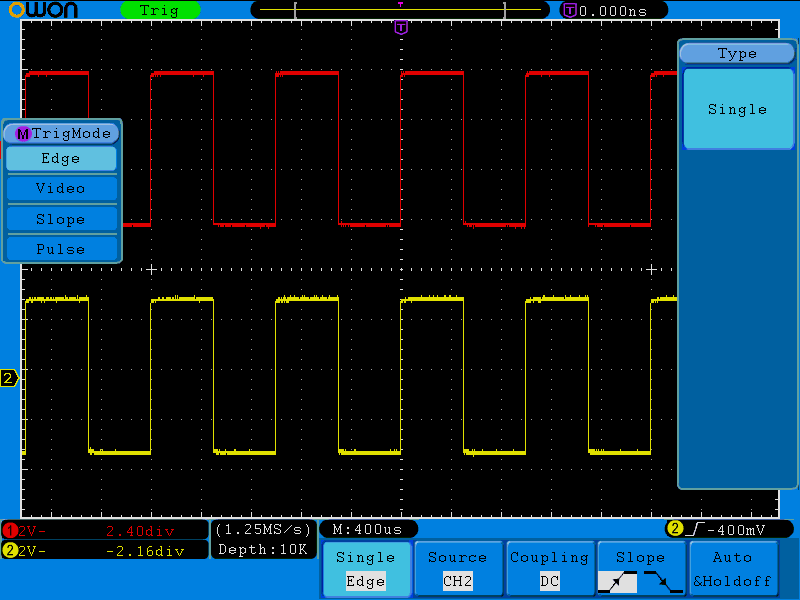

 Trigger Type Edge, Pulse, Video, Slope, and Alternate
 Trigger Mode Auto, Normal, and Single
 Waveform Math +, -, ×, ÷, invert, FFT
 Communication Interface USB host, USB device, Pass / Fail, LAN, and VGA (optional)
 Battery not supported
 Dimension (W×H×D) 348 × 170 × 78 (mm)
 Weight (without package) 1.50 kg
