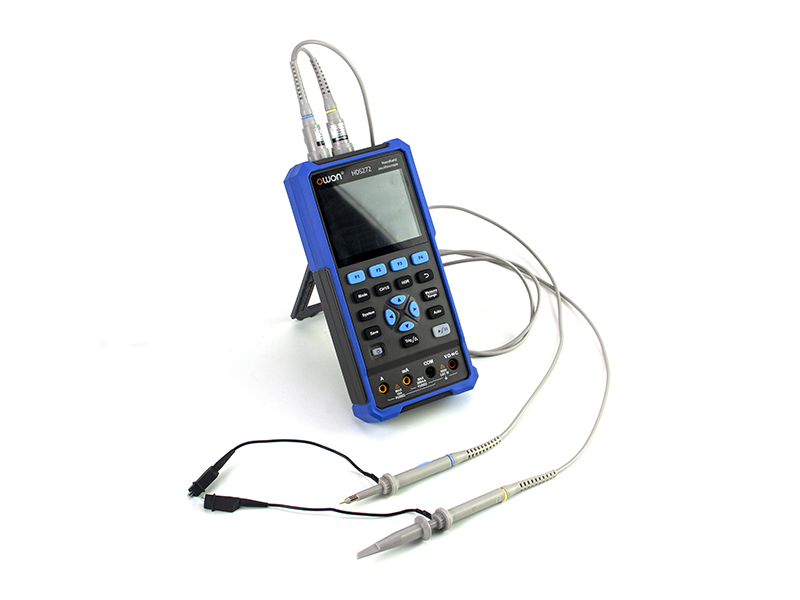

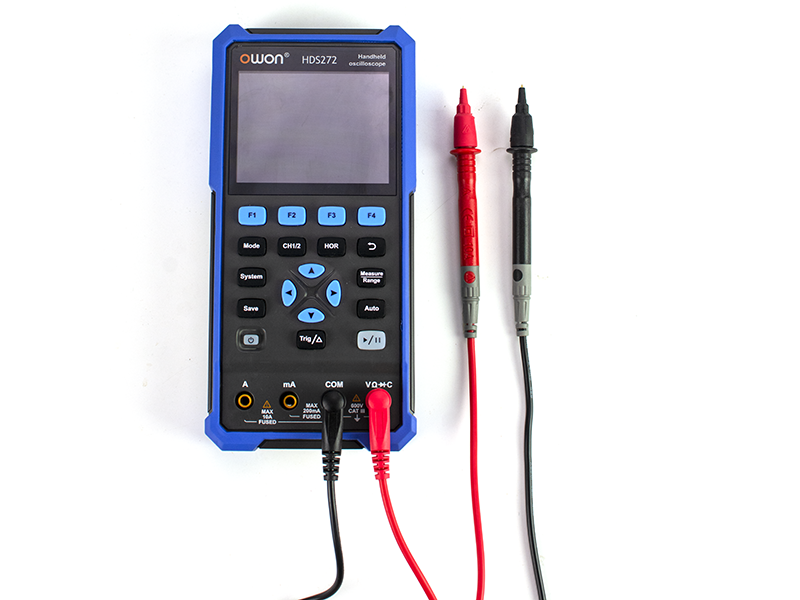

OWON HDS200 Series Digital Oscilloscope

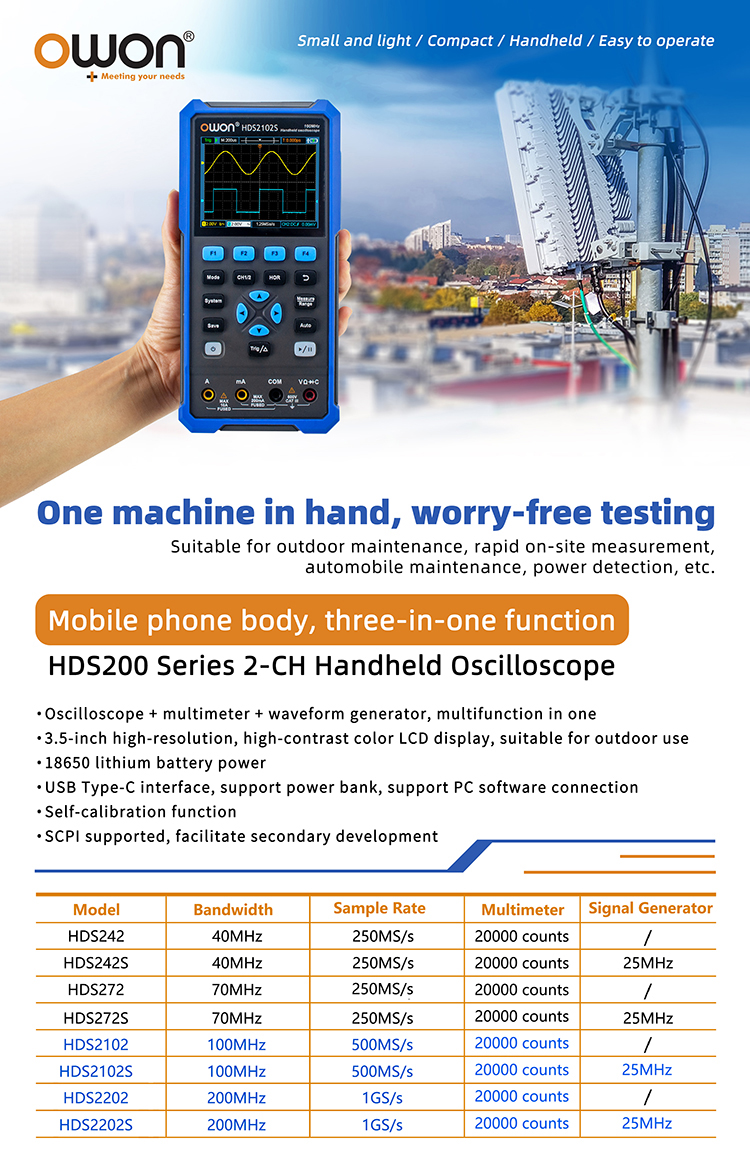

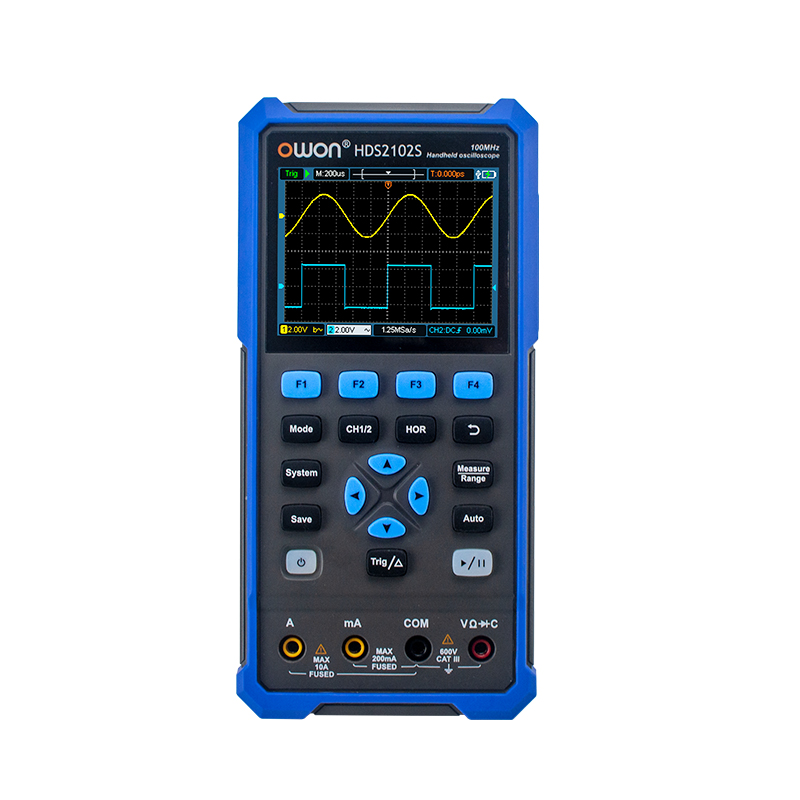

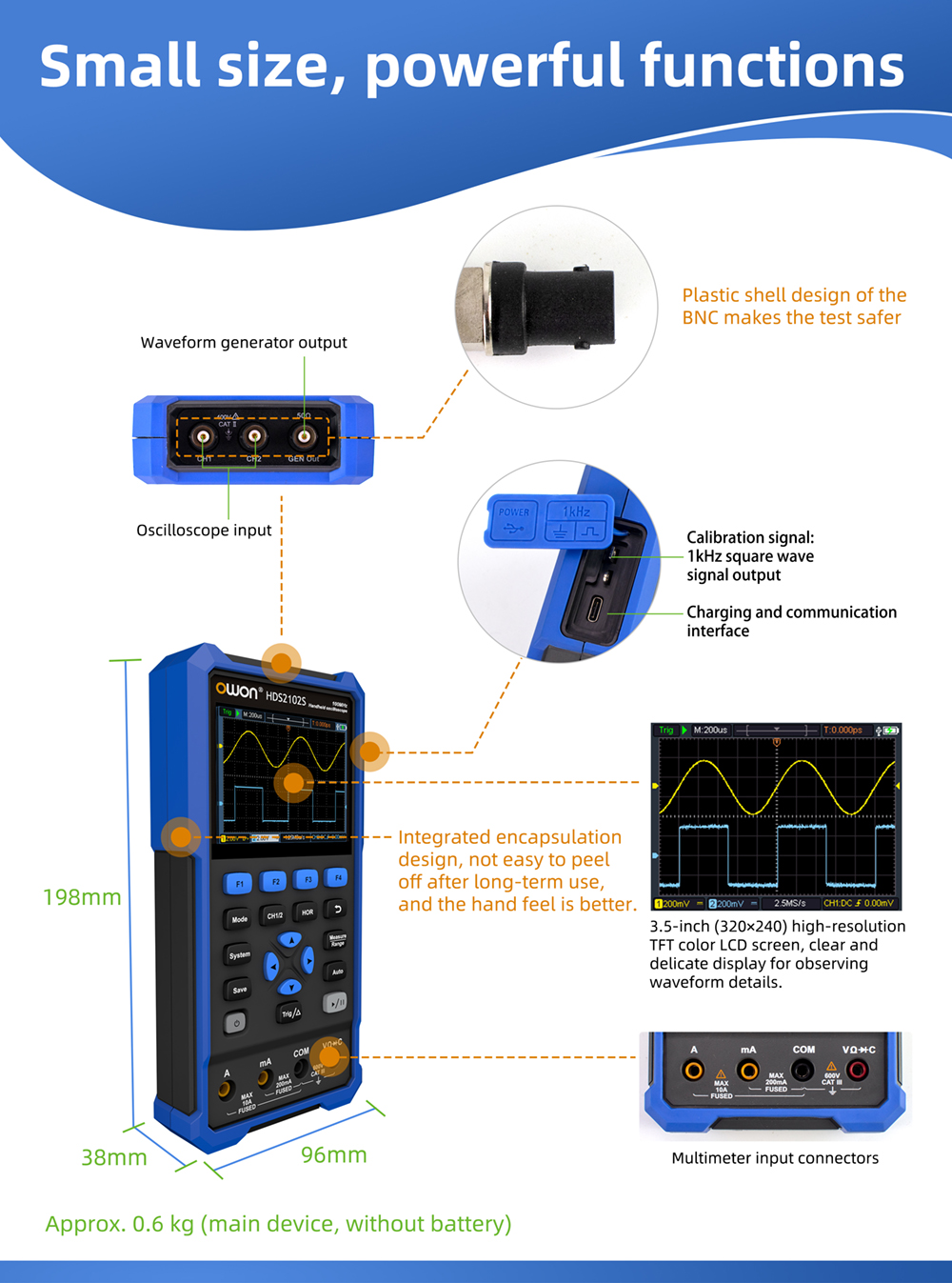

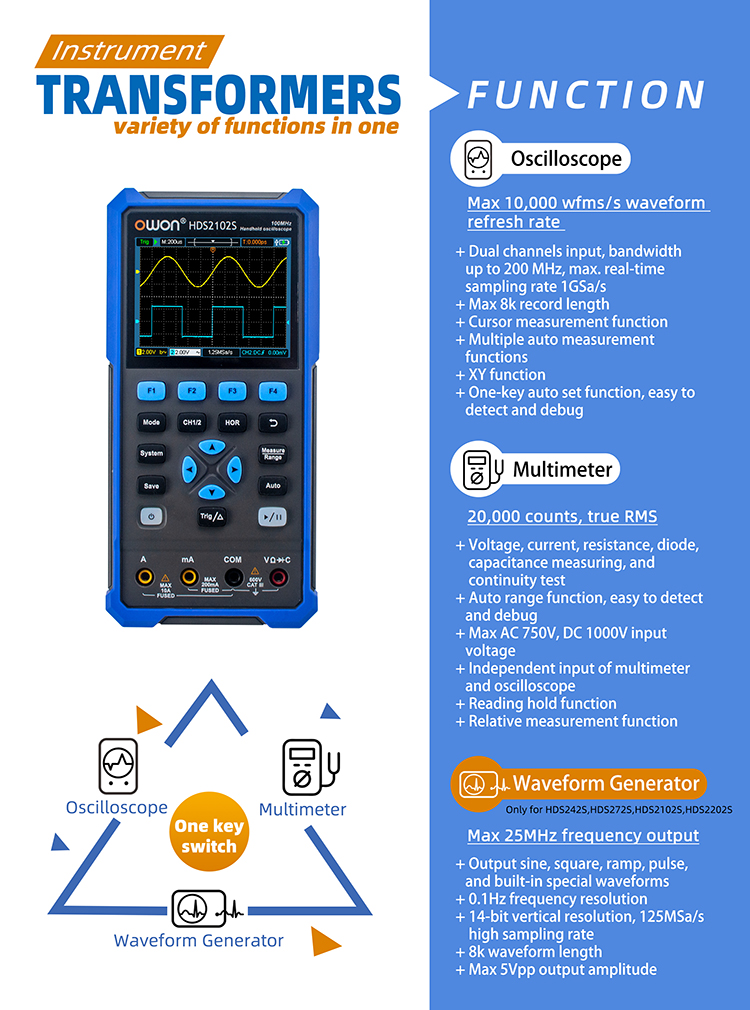

+ Oscilloscope + multimeter + waveform generator, multifunction in one
+ 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use

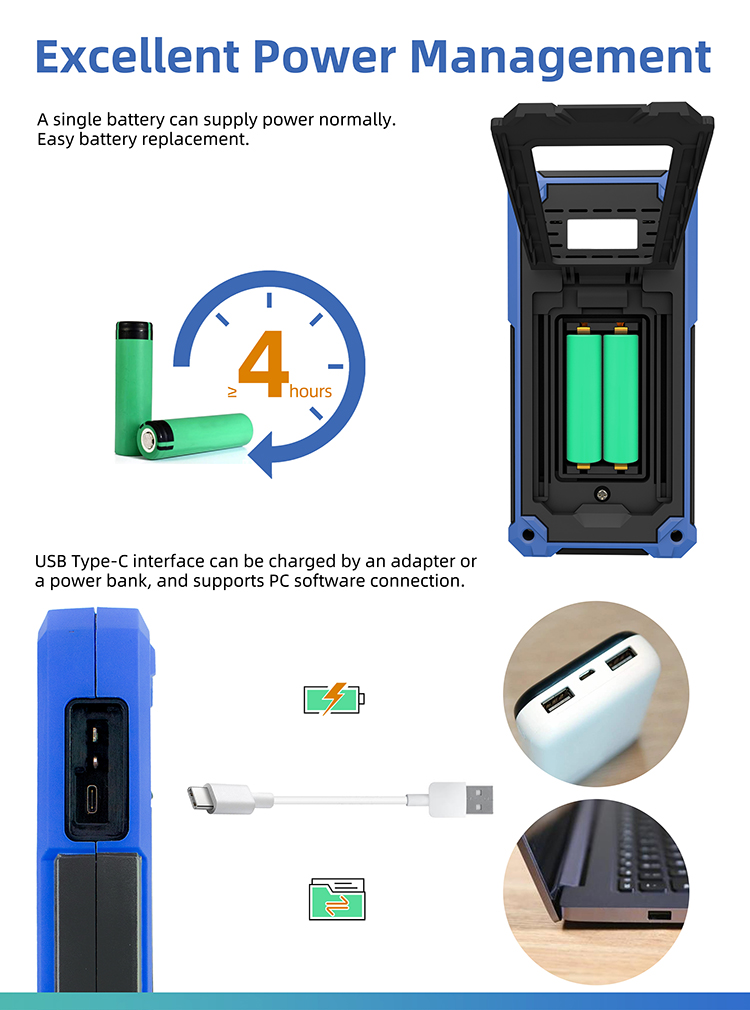

+ 18650 lithium battery, can work continuously for 3-6 hours
+ USB Type-C interface, support power bank, support PC software connection
+ Self-calibration function
+ SCPI supported, facilitate secondary development
Send Inquiry
Product Details





Video
  • HDS200 Series Handheld Oscilloscope Introduction

Specifications

「Oscilloscope」Specifications


Model

HDS242

HDS272

HDS2102

HDS2202

HDS242S

HDS272S

HDS2102S

HDS2202S

Bandwidth

40MHz

70MHz

100MHz

200MHz

40MHz

70MHz

100MHz

200MHz

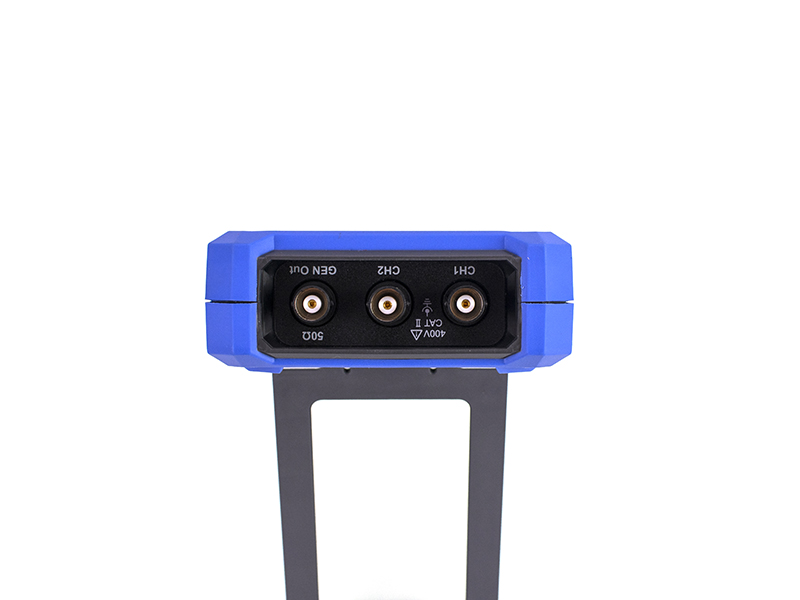

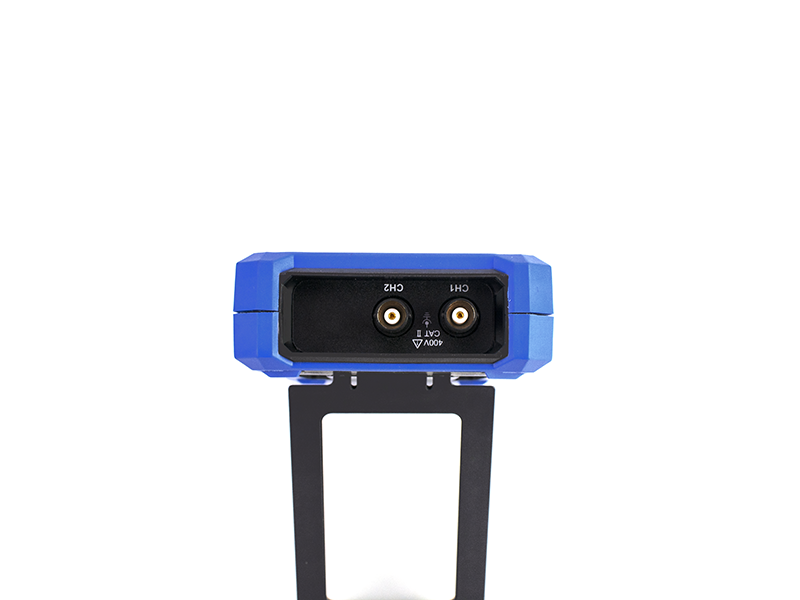

Channels

2-CH Oscilloscope

2-CH Oscilloscope+1-CH Generator

Sample Rate

250MSa/s

500MSa/s

1GSa/s

250MSa/s

500MSa/s

1GSa/s

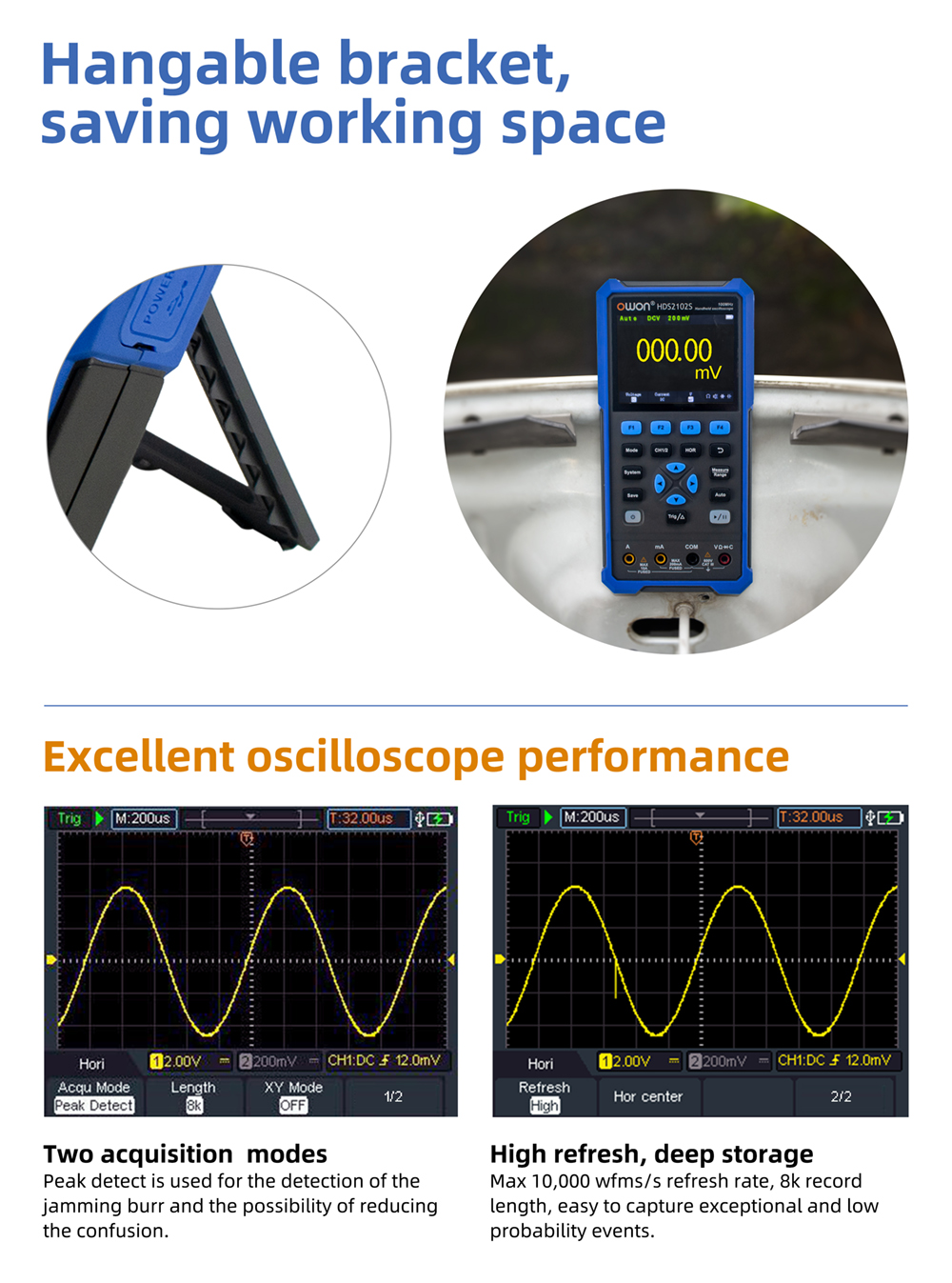

Acquisition Model

Normal, Peak detect

Record Length

8K

Display

3.5-inch LCD

Waveform Refresh Rate

10,000 wfrms/s

Input Coupling

DC, AC, and Ground

Input Impedance

1 MΩ±2%, in parallel with 16pF±10pF

Probe Attenuation Factors

1X,10X,100X,1000X,10000X

Max. input Voltage

400V (DC+AC, PK-PK, 1MΩ input impedance) (10:1 probe attenuation)

Bandwidth Limit (typical)

20MHz

Horizontal Scale

5ns/div - 1000s/div, step by 1 - 2 - 5

2ns/div - 1000s/div, step by 1 - 2 - 5

5ns/div - 1000s/div, step by 1 - 2 - 5

2ns/div - 1000s/div, step by 1 - 2 - 5

Vertical Sensitivity

10mV/div - 10V/div

Vertical Resolution

8 bits

Trigger Type

Edge

Trigger Modes

Auto, Normal, single

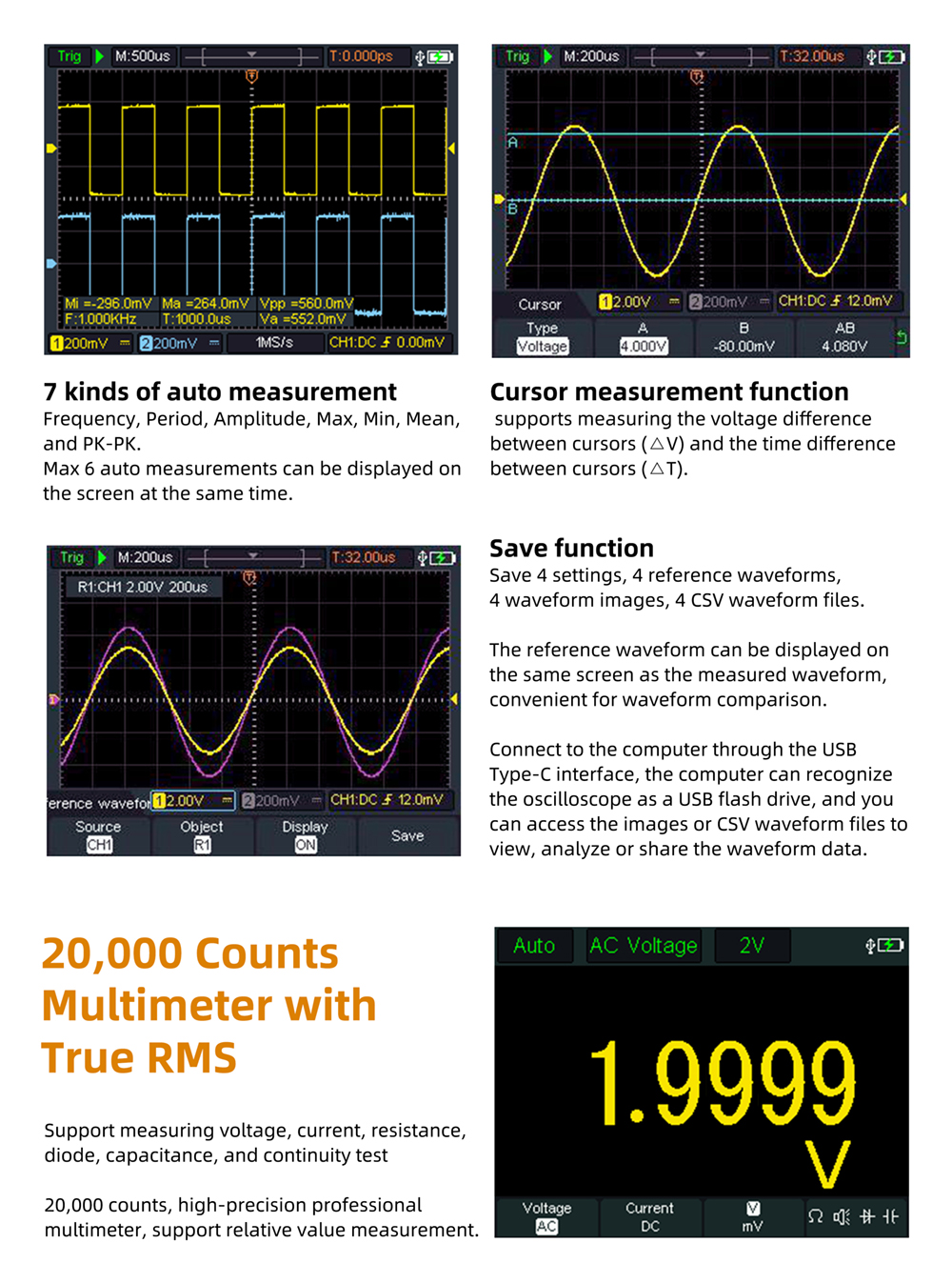

Automatic Measurement

Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

Cursor Measurement

ΔV, ΔT, ΔT&ΔV between cursors

Communication Interface

USB Type-C

「Multimeter」Specifications (Standard)
Max. Resolution 20,000 counts
Testing Mode Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance 10MΩ
Max Input Voltage AC 750V, DC 1000V
Max Input Current DC : 10A AC : 10A
Diode 0 - 2V

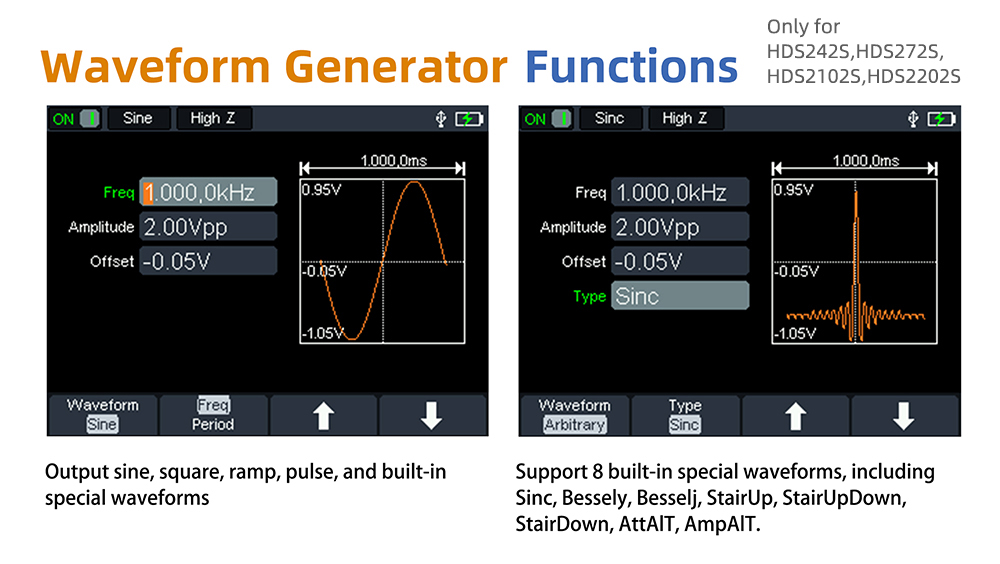

「Waveform Generator」Specifications (Only for HDS242S, HDS272S, HDS2102S, HDS2202S)

Frequency Output
Sine 0.1Hz - 25MHz
Square 0.1Hz - 5MHz
Ramp 0.1Hz - 1MHz
Pulse 0.1Hz - 5MHz
Arbitrary 0.1Hz - 5MHz
Sampling Rate 125MSa/s
Channel 1-CH
Amplitude Range (high impedance) 20 mVpp - 5 Vpp
Waveform Length 8K
Vertical Resolution 14bits
Output Impedance 50Ω

Support
Accessories

The accessories subject to final delivery.

  • Quick Guide

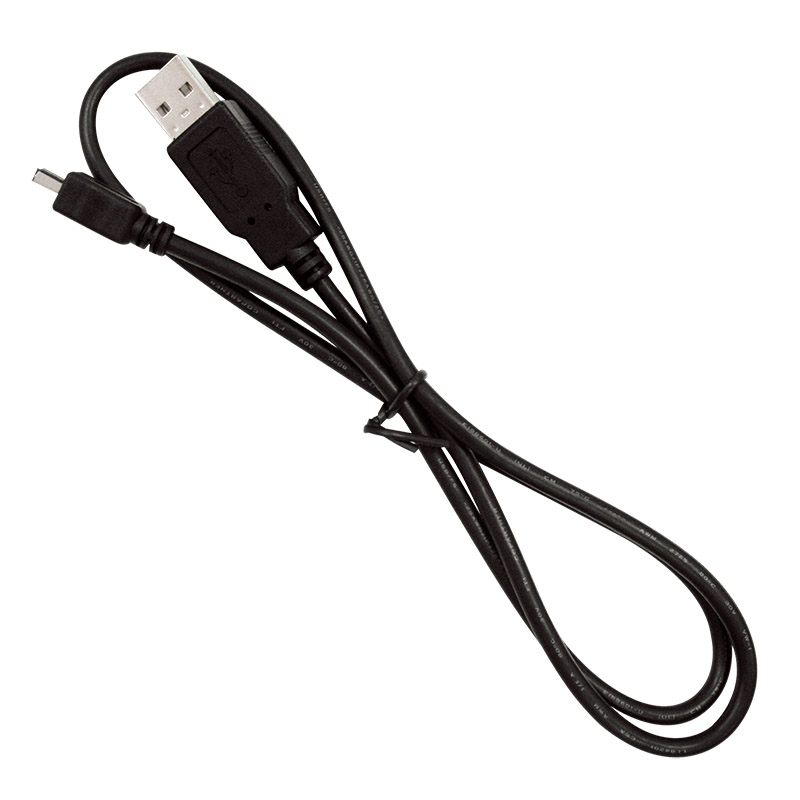

  • USB Cable
  • Probe Adjust

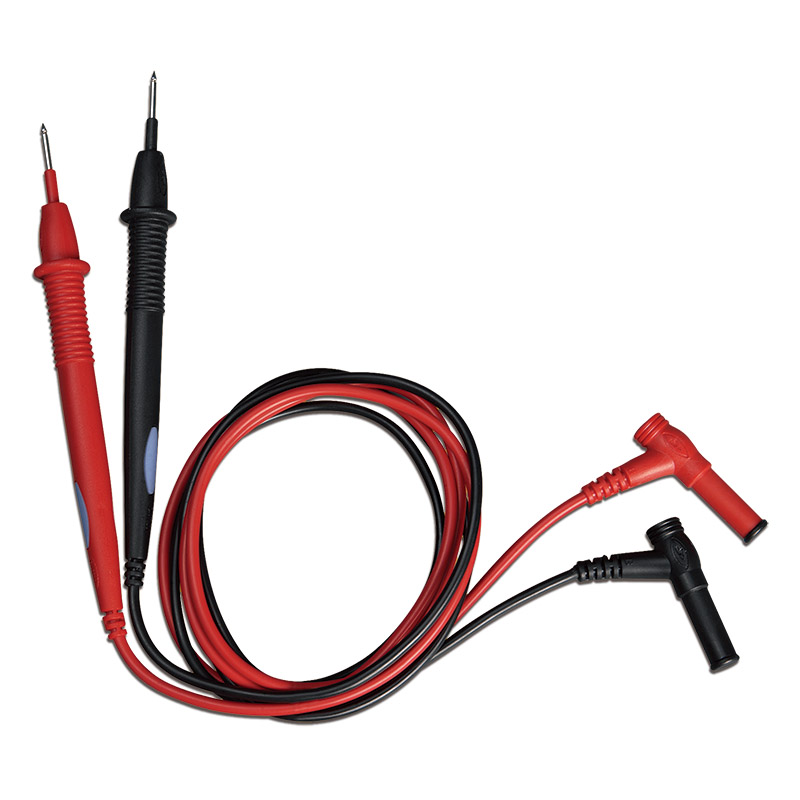

  • Multimeter Lead

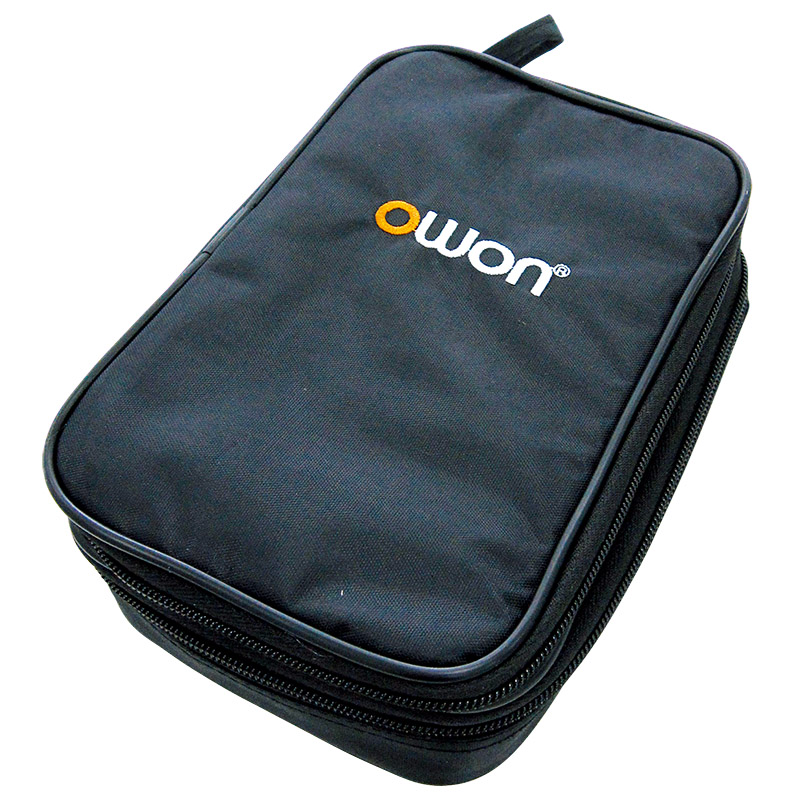

  • Soft Bag
  • Probe
  • BNC to Alligator Clip
Inquiry
