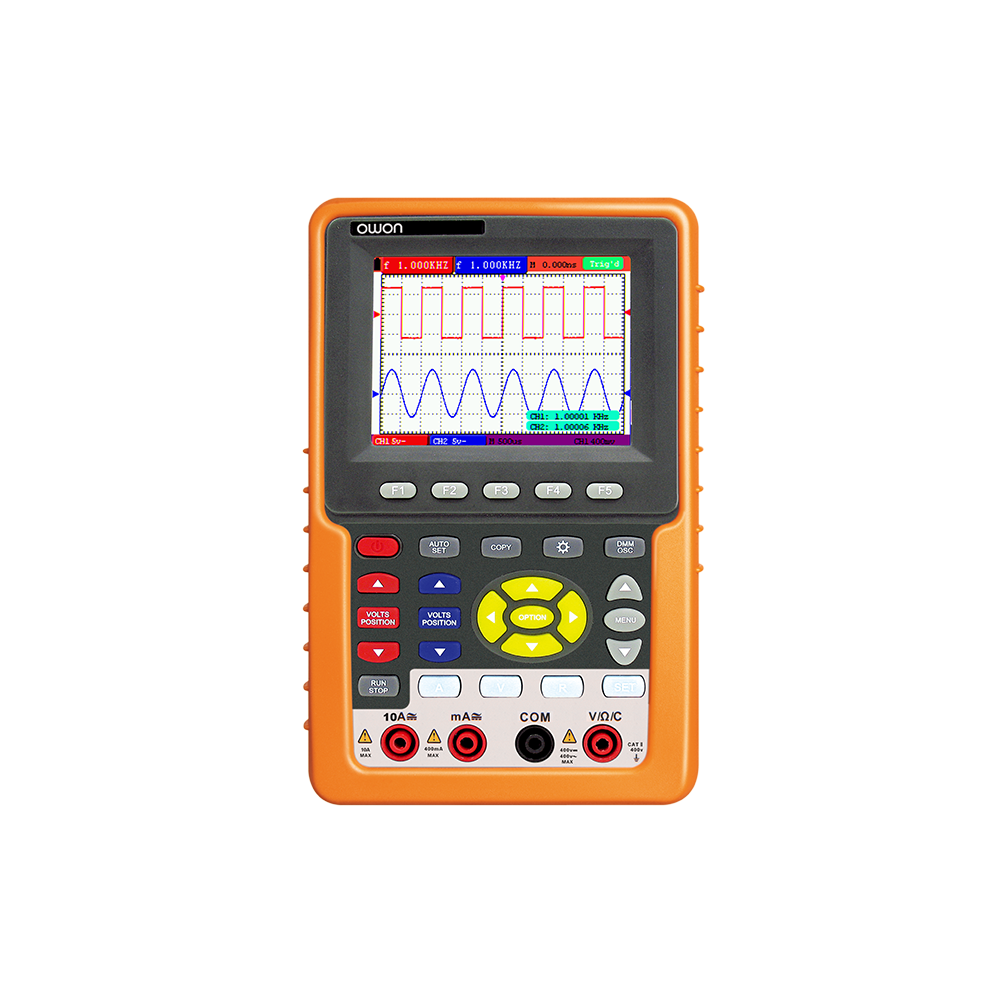

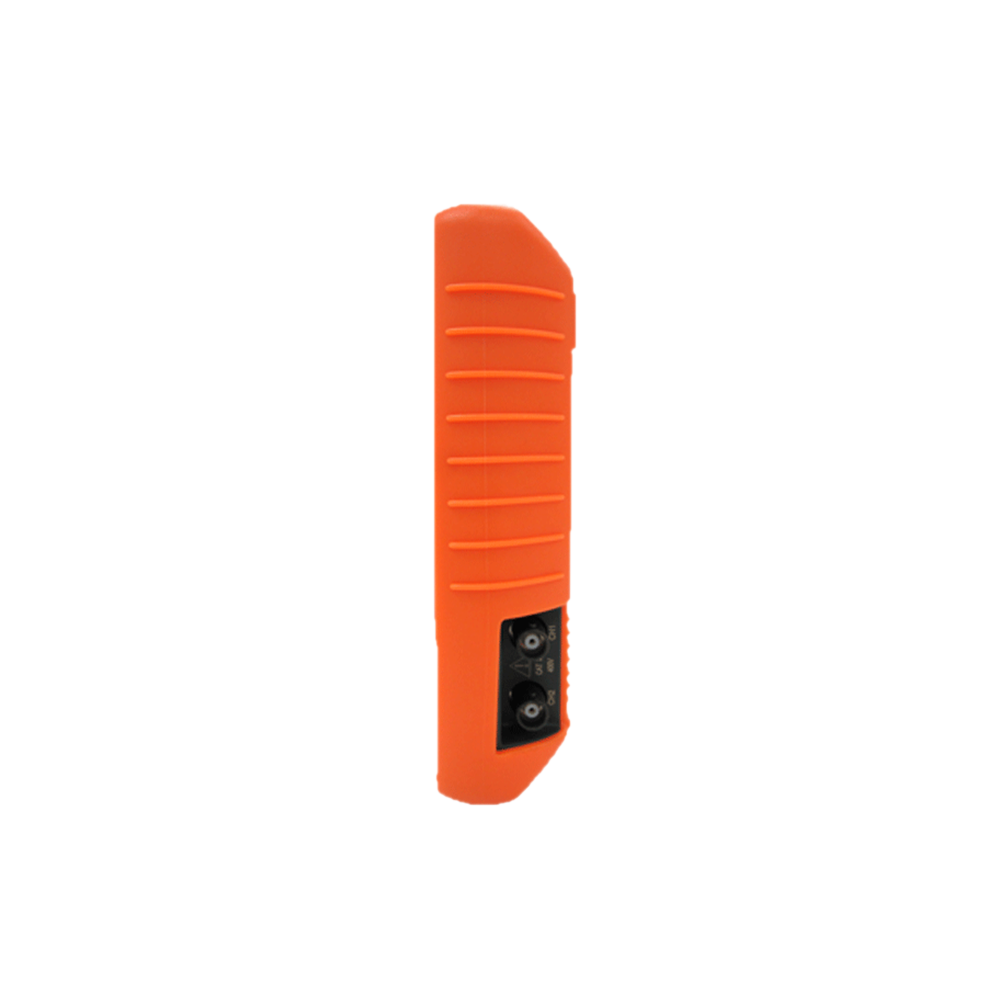

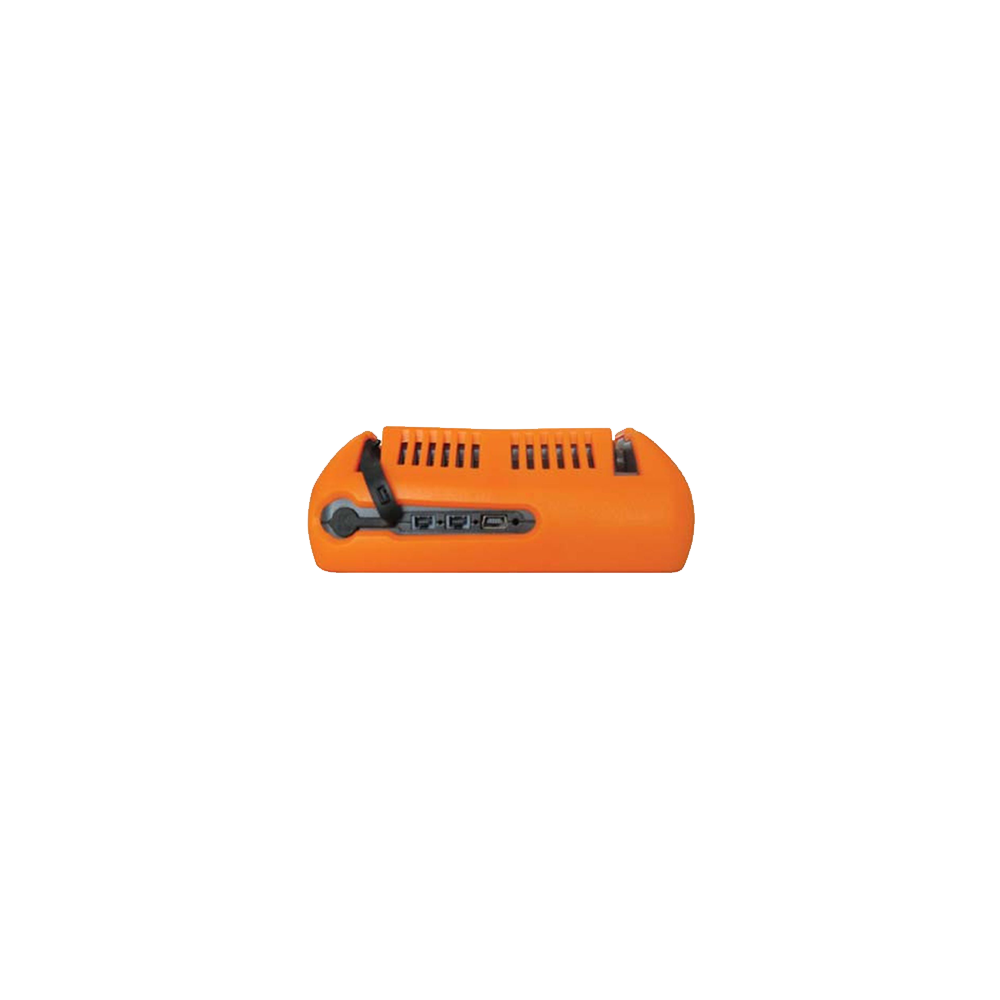

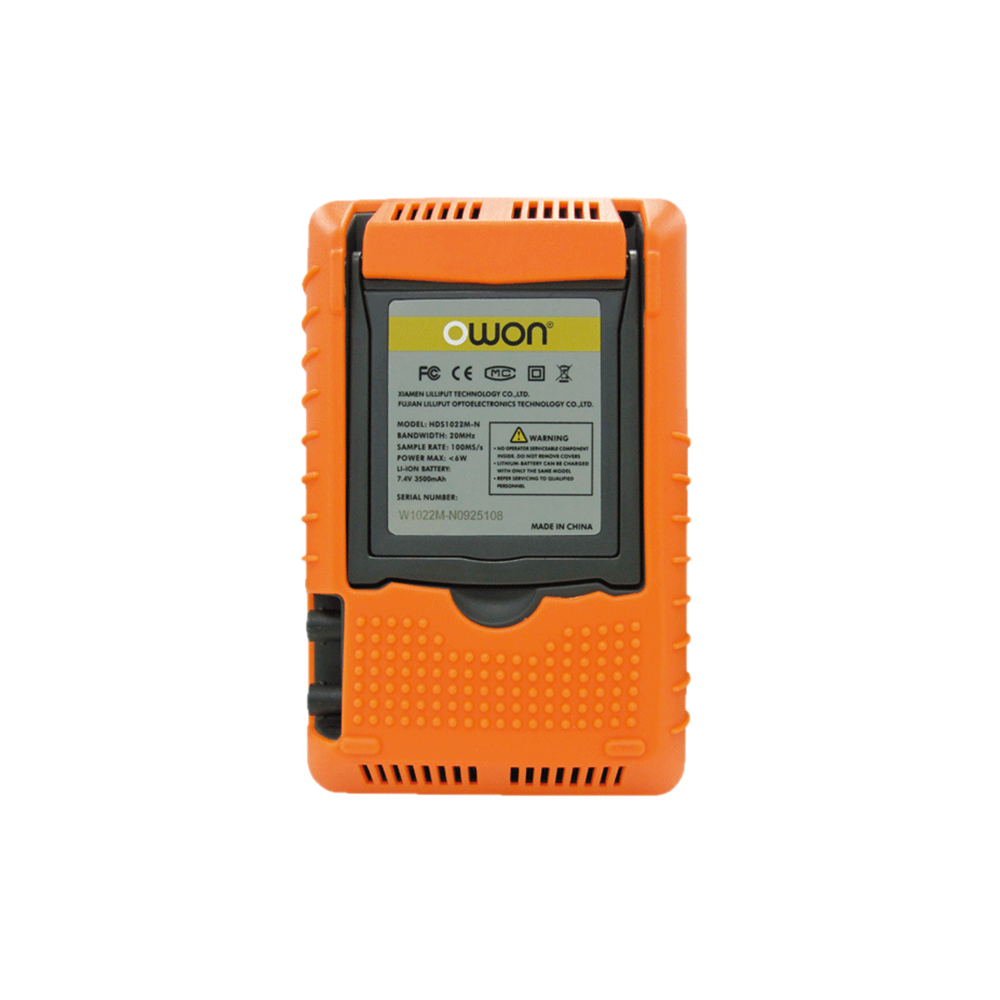

OWON HDS-N Series 2-CH Digital Oscilloscope

- 2 in 1 (DSO + Multimeter)
- Auto-scale Function
- FFT
- 20 group automatic measurement options
- Bandwidth : 20MHz - 200MHz
- USB data transmission supported
- Multimeter newly supported SCPI
- Rechargeable Li-ion battery (6 hours' backup)
- Waveform record & restore

Send Inquiry
Product Details

We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON hds-n series 2-ch digital oscilloscope, automotive oscilloscope, laptop oscilloscope, oscilloscope factory, dual channel oscilloscope with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.

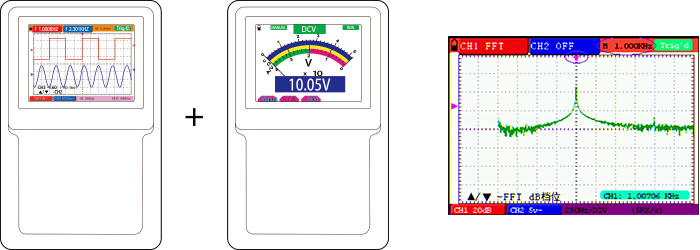

1. 2-in-1 station

Oscilloscope + 3 3/4 digits multimeter + FFT spectrum analyzer.

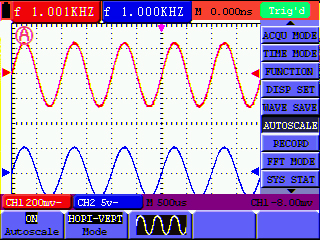

2. Auto-scale Function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.







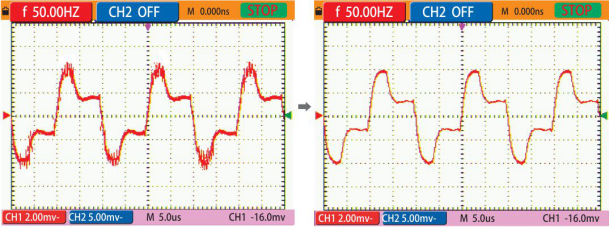

3. Trigger Sensitivity Adjustable

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.







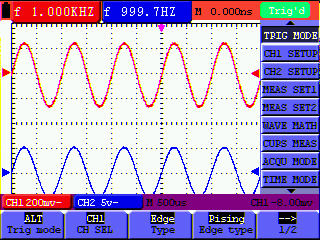

4. Alternative trigger function

OWON HDS digital oscilloscope alternative trigger function support 2 simultaneous signal test, improve working efficiency.







Video
  • HDS Battery Installation Guide

Specifications

Model  HDS1022M-N   HDS2062M-N  HDS3102M-N    HDS4202M-N
 Bandwidth  20MHz  60MHz  100MHz 200MHz
 Sample Rate (real time )  500MS/s   1GS/s
 Horizontal Scale (s/div)  5ns/div~100s/div, step by 1~2.5~5
5ns/div~100s/div, step by 1~2~5
2ns/div~100s/div, step by 1~2~5
 Display  3.7” color TFT display (640 × 480 pixels)
 Channel  dual
 Record Length 6K points
 Input Coupling  DC, AC, and GND
 Vertical Sensitivity  5mV/div~5V/div (at input)
 Vertical Resolution (A/D)  8 bits
 Trigger Type  Edge, Video, and Alternate
 Acquisition Mode  Sample, Peak Detect, and Average
 Waveform Math  +, -, ×, ÷, invert, FFT
 Communication Interface  USB
 Power Supply  100V-240V AC, 50/60Hz
 Li-ion Battery  7.4V, 6 hours’ operation
 Dimensions (W × H × D)  115 × 180 × 40 (mm)
 Weight (without package)  645.00 g
Multimeter Specifications
Full Scale Reading  3(3/4) digit (max 4000-count)  diode  0V-1V
Input Impedance  10 MΩ  On / Off Test  < 50 (± 30) beeping
Voltage VDC : 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input : DC 1000V
VAC : 4V, 40V, 400V : ±(1% ± 3 digits), 750V : ±(2% ± 3 digits); Frequency : 40Hz - 400Hz;
max input : AC 750V (virtual value)
Current DC : 40mA, 400mA : ±(1.5% ± 1 digit), 10A : ±(3% ± 3 digits)
AC : 40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance  400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
Capacitance  51.2nF - 100uF : ±(3% ± 3 digits)



Support
Accessories

The accessories subject to final delivery.

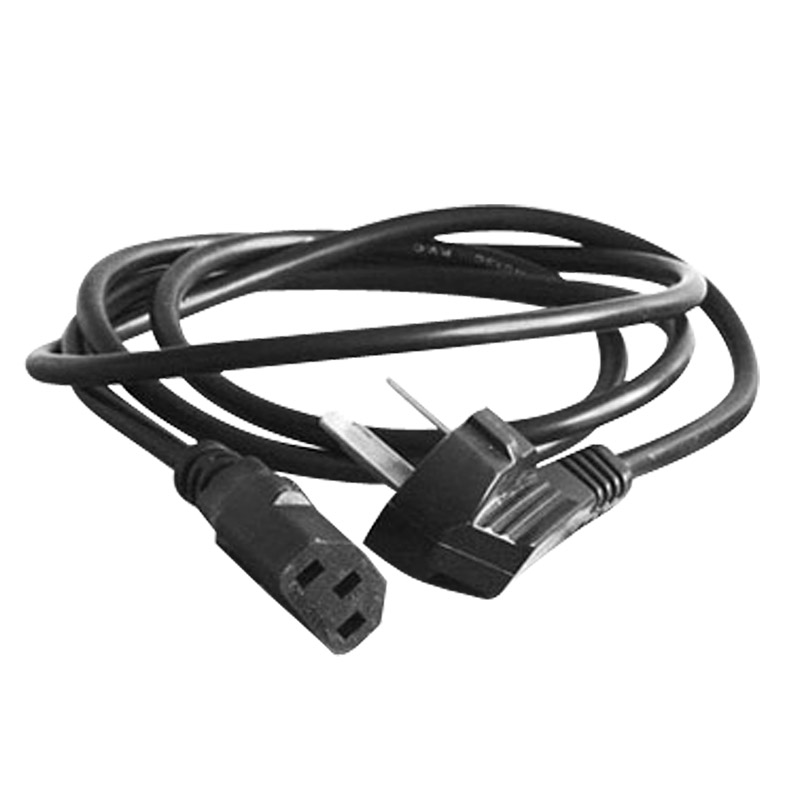

  • Power Cord
  • CD Rom
  • Quick Guide
  • USB Cable

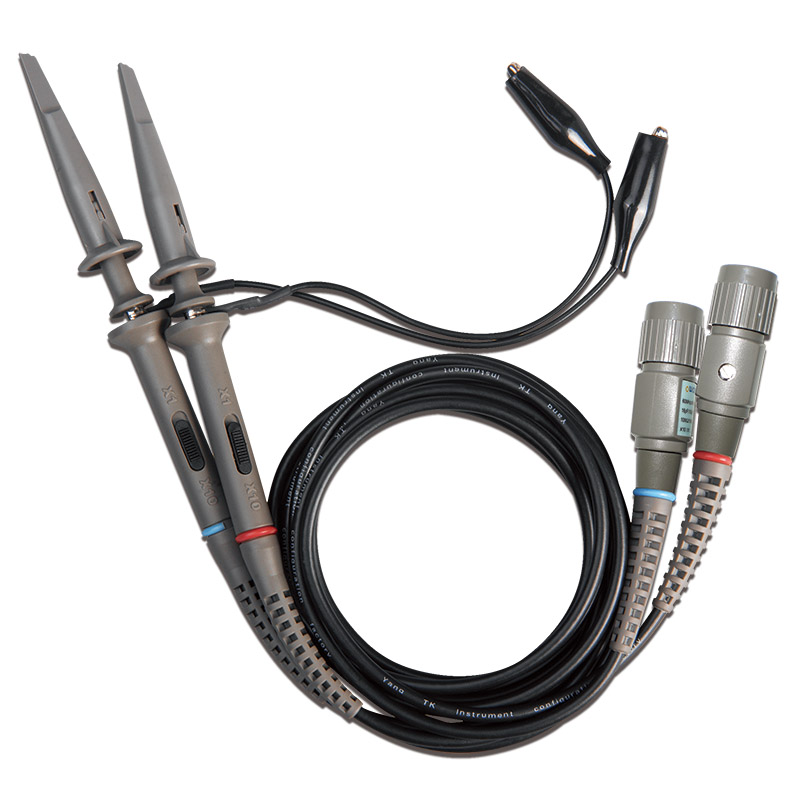

  • Probe
  • Probe Adjust
  • Multimeter Lead

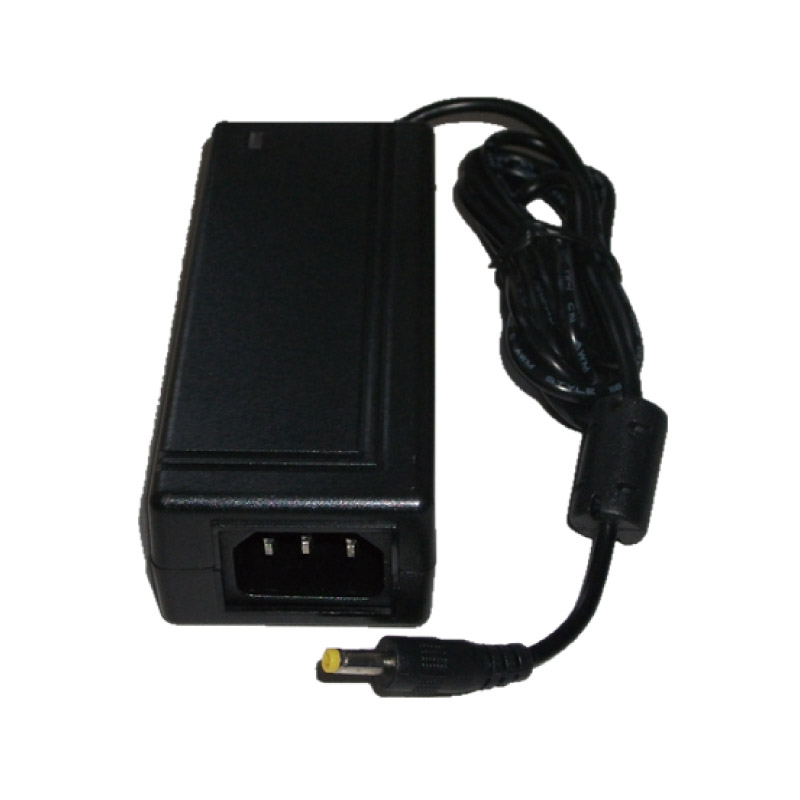

  • Adapter

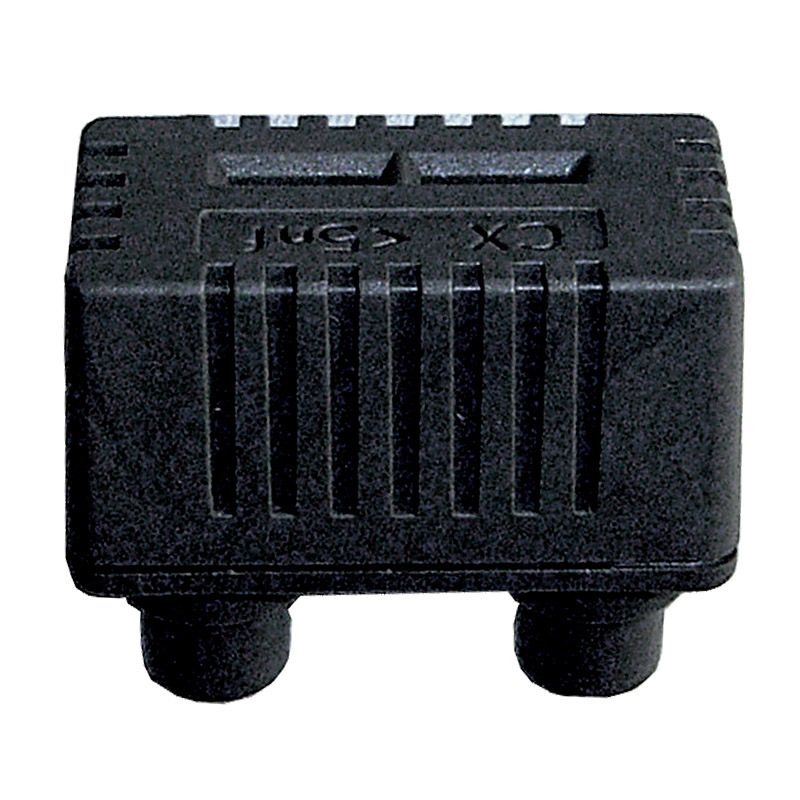

  • Capacitance Ext Module
  • Soft Bag (optional)

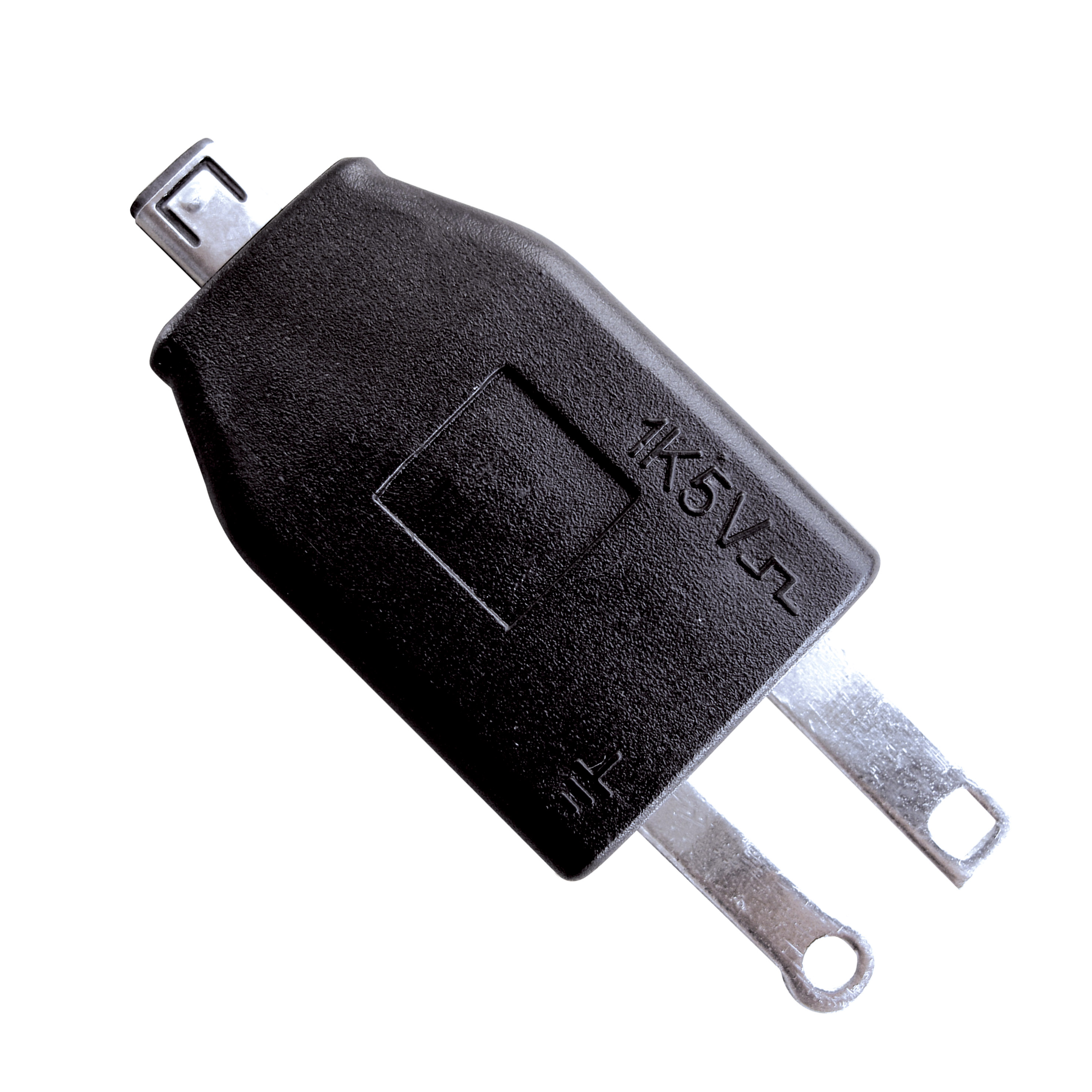

  • 5V, 1KHz Output

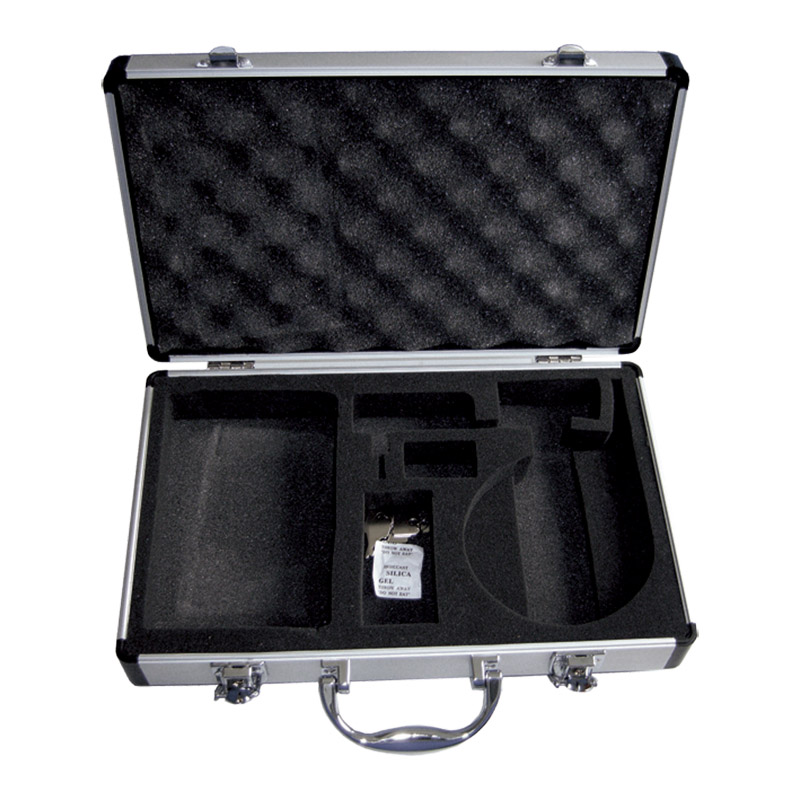

  • Metal Case
